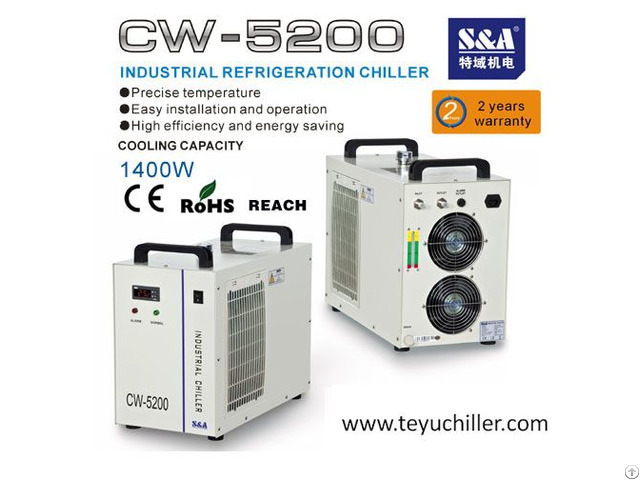

S&A chiller CW-5200 for LED uv curing system

S&A brand CW-5200 chiller is fit for cooling LED uv curing system.

Its cooling capacity up to 1.4KW, ±0.3℃ temperature control precision and temperature control range in 5-35℃.

It is popular for its 2 temperature control modes as constant temperature and intelligent temperature control.

Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.

S&A chillers have passed ISO, CE, RoHS and REACH approvals and the warranty is 2 years.

chiller CW-5200 specfications:

Voltage: 110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-134a / R-410a

Pump power: 0.03KW/0.05KW/0.1KW; Tank capacity: 6L

Max.

lift: 10M-25M; Max.

flow: 10L/min- 16L/min

N.

W: 26Kgs; G.

W: 29Kgs;

Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)
