S And A Air Cooled Water Chiller Cwul 10 For 3w 15w Uv Laser - China

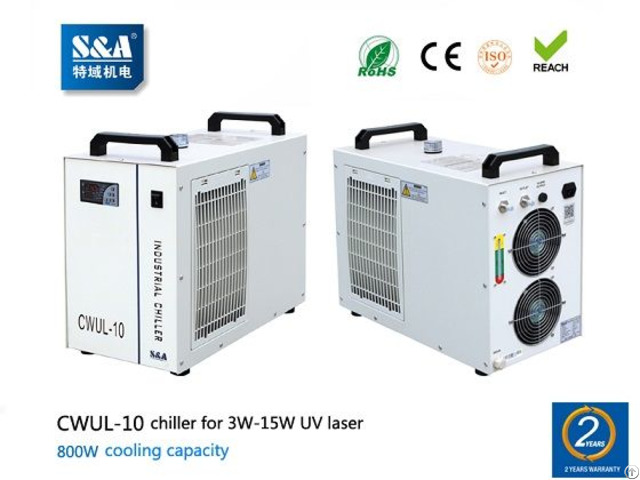

S&A air cooled water chiller CWUL-10 for 3W-15W UV laser

S&A CWUL-10 air cooled water chiller is applied for cooling 3W-15W UV laser.

CWUL-10 has 2 temperature control modes as constant temperature and intelligent temperature control.

Under intelligent mode, the water temperature is adjusted according to ambient temperature.

Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.

CWUL-10 feature:

1 - 800W cooling capacity; use environmental refrigerant;

2 - Compact size, long working life and simple operation;

3 - ±0.3℃ precisely temperature control;

4 - The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

5 - Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

6 - Multiple power specifications; CE, RoHS and REACH approval;

7 - Optional heater and water filter.

CWUL-10 water chiller parameter: Voltage: 220V; Frequency: 50Hz; Refrigerant: R-134a

Pump power: 50W; Tank capacity: 6L

Max.

lift: 12M; Max.

flow: 13L/min N.

W: 24Kgs; G.

W: 27Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H) About S&A Brand

S&A(TEYU) was founded in 2002 - After 15 years of development, the headquarter covers an area of 18, 000 square meters, and has about 250 employees.

Why choose S&A

Product Advantages: 1 - With 11 patent certificates, CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warrenty

2.

±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;

3 - Establish logistic warehouses at USA and Europe;

Manufacturing Advantages: 1 - Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;

2 - Anual ouput 60, 000 units, product exports rate above 60%；

3 - Standard bulk production, standard parts rate up to 80% ；

4 - With excellent laboratory testing system, simulates actual working environment for chiller.
