S And A Air Cooled Chiller Cw 5200 For Cnc Vertical Machine Center - China

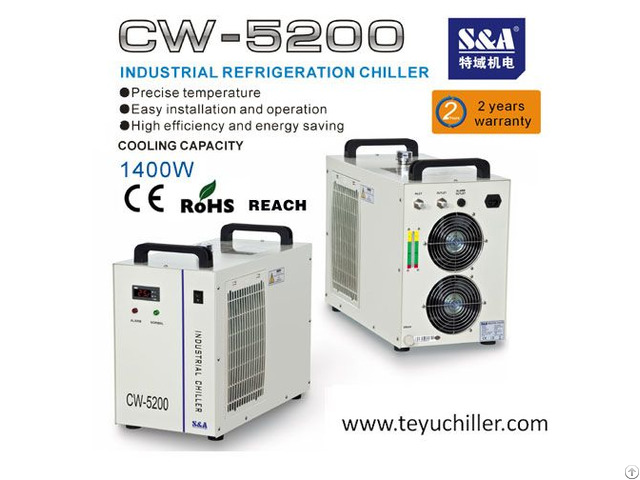

S&A air cooled chiller CW-5200 for cnc vertical machine center

S&A CW-5200 air cooled chiller developed and produced by S&A company of China it is suitable to cool cnc vertical machine center.

Its cooling capacity up to 1.4KW and the thermoelectric control in ±0.3℃ precision and temperature control range in 5-35℃.

S&A chiller has passed CE, RoHS and REACH approval.

Since January 2016, the warranty period of S&A chiller has extended to 2 years.

CW-5200 water cooler parameter:

Model CW-5200AG CW-5200BG CW-5200DG CW-5200TG CW-5200AH CW-5200AI CW-5200BI CW-5200DI

Voltage 220V 220V 110V 220V 220V 220V 220V 110V

Frequency 50Hz 60Hz 60Hz 50/60Hz 50Hz 50Hz 60Hz 60Hz

Current 2.4~3.1A 2.6~3.3A 4.5~6.5A 2.4~3.3A 2.4~3.1A 2.4~3.1A 2.6~3.3A 4.5~6.5A

Compressor power 0.52KW 0.5KW 0.68KW 0.49/0.57KW 0.52KW 0.52KW 0.5KW 0.68KW

0.71HP 0.68HP 0.93HP 0.66/0.77HP 0.71HP 0.71HP 0.68HP 0.93HP

Refrigeration capacity 5084Btu/h 4982Btu/h 5186Btu/h 4825/5797Btu/h 5084Btu/h 5084Btu/h 4982Btu/h 5186Btu/h

1.49KW 1.46KW 1.56KW 1.41/1.70KW 1.49KW 1.49KW 1.46KW 1.56KW

1281Kcal/h 1256Kcal/h 1307Kcal/h 1219/1465Kcal/h 1281Kcal/h 1281Kcal/h 1256Kcal/h 1307Kcal/h

Refrigerant R-22 / R-134a / R-410a

Refrigerant charge 360g 380g 350g 360/380g 360g 360g 380g 350g

Precision ±0.3℃

Reducer Capillary

Protection Overcurrent protection for compressor, flow alarm, over temperature alarm

Pump power 0.03KW 0.05KW 0.1KW

Tank capacity 6L

Inlet and outlet External Φ10mm brass connector Φ10mm speedy connector

Max.

lift 10 M 12M 25M

Max.

flow 10 L/min 13L/min 16 L/min

N.

W 26 Kgs

G.

W 29 Kgs

Dimension 58 X 29 X 47 cm (L X W X H)

Package dimension 70 X 43 X 58 cm (L X W X H)

About S&A Brand

S&A produces more than 60000 units of industrial chillers by year, we always insist on”Quality First” in design and production.

“S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60%.
