Oem Water Cooled Scroll Chiller - China

Oem Water Cooled Scroll Chiller, Custom Aluminum Industry Water Cooled Chiller

Description:

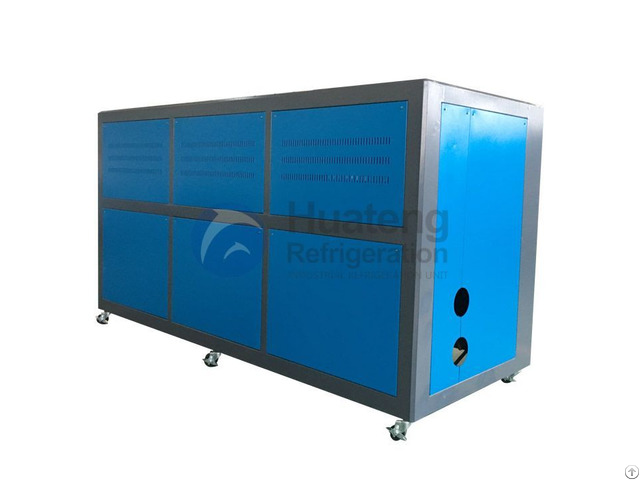

The series water cooled scroll type chiller cooling capacity from 9KW to 120KW.

This series units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain.

It is automatically adjusted according to load changes and is more energy efficient.

Features of chiller:

1 - Energy with high efficient

2 - Operation noise and vibration is low

3 - No friction loss

4 - Low starting current

5 - High system sustainability

6 - Environmental protection Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective Water cooled scroll type chiller(R-134a)

Model HTB-M10S HTB-M15S HTB-M20S HTB-M23S HTB-M30S HTB-M30S HTB-M41S HTB-M61S HTB-M82S

Cooling

Capacity KW 9.5 15.1 20.4 23.2 29.8 30.2 40.8 61.2 81.6 Kcal/Hr 8170 12986 17544 19952 25628 25972 35088 52632 70176 RT 2.7 4.29 5.8 6.6 8.47 8.59 11.6 17.4 23.2

Power 50HZ 3P-380V-50HZ

Comprosser Mode Full closed high efficiency flexible scroll compressor Input power(KW) 2.19 3.49 4.55 5 6.8 6.98 9.18 13.65 18.2 Rated load current(A) 5.4 9.25 11.2 10.8 16.7 18.5 22.4 33.6 44.8

Wiring specification 4 6 6 6 10 10 25 25 25

Add unloading way 0, 100% 0, 50%, 100% 0, 33%, 66%, 100% 0, 25%, 50%, 75%, 100%

Condensor Cooling water temp(℃) Inlet temp 30℃/outlet temp 35℃ Cooling water flow(m³/h) 2.04 3.25 4.39 4.99 6.41 6.49 8.77 13.16 17.54 Waterpipe diameter(DN) 32 32 40 40 40 40 50 50 65

Evaporater Freeze water temp(℃) Inlet temp 12℃/outlet temp 7℃ Freeze water flow(m³/h) 1.63 2.6 3.51 3.99 5.13 5.19 7.02 10.53 14.04 Waterpipe diameter(DN) 32 32 32 32 40 40 40 50 65

Safeguard Water pump protection chain, electric leakage protection, overload protection, overpressure, the power reverse phase, open phase protection, abnormal refrigerant protection, exhaust temperature protection, Lack of water protection, etc.

Size L(mm) 1210 1250 1250 1400 1400 1500 1640 1900 2500 W(mm) 650 700 700 700 700 700 700 850 800 H(mm) 1080 1100 1100 1100 1100 1100 1100 1250 1250

Units Weight Kg 240 300 320 340 370 440 560 630 720 Note:

1, Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。

2, Above is my company's industrial water-cooled water chiller parameters, evaporator is shell and tube type, if there is a demand for the built-in bank, non-standard products of water pump, can be designed and manufactured according to the concrete situation.

3, In order to ensure technology constantly updated, the above parameters are subject to change without prior notice

4, The specific parameters for non-standard products, welcome consulting our technical department.
