Flake Ice Machine 5t 24h - China

Fresh Water /Salt Water

Air Cooling/Water Cooling

Flake Ice Thickness: 1.5-2.2mm

Refrigerant: R22/R404A

With PLC Controller

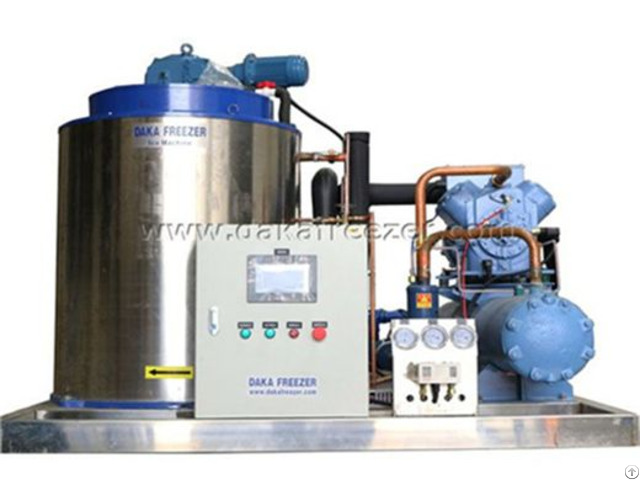

Flake Ice Machine 5T/24H

DAKA FREEZER industry flake ice machines are mainly used in aquatic processing, chemical pigments, biological pharmacy

and scientific experiments etc.

Ice production from 3t/d to 15t/d which can meet the industrial ice demand.

Advantages of the flake ice machine:

1 - The ice machine has high ice efficiency and small loss of cooling capacity.

2 - Good quality of the flake ice and is dry and not bonded.

3 - The flake ice produced by the flake ice machine is rich in variety, simple in structure

4 - PLC programmable controller of the flake ice machine, with stable performance, random control

5 - The flake ice machine is easy to operate, high standard of hygiene

6 - The flake ice machine with the perfect fault protection device.

Technical Parameters

Model DFI-5T

Capacity 5000kg/24h

Necessory cooling capacity 30kW

Compressor Cooling capacity 33KW

Evaporating temp.

-20℃

Condensing temp.

40℃

Standard water temperature 20℃

Power install 23KW

Compressor 25HP 18.5KW

Water pump 0.09KW

Cooling Tower 0.75KW

Power supply 380V/50Hz/3P

Water pressure 0.1Mpa-0.5Mpa

Refrigerant R404a

Water consumption 0.21 M3/h

Water pipe 1/2’

Weight 960kg

Machine size 2100*1700*1500mm

DAKA FREEZER medium-size industry flake ice machine (ice production 3T/4T/5T/8T/10T/15T/24H)

1 - Standard conditions: Ambient temperature 25℃, water inlet temperature 15℃, evaporating temperature -22℃, condensing temperature 40℃.

2 - Thickness of the flake ice: 1.5mm-2.2mm, it can be adjustable.

3 - The above parameters will be changed subject to the technical invotation without further notice.
