  • Flake Ice Machine 2t 24h - China

    price: contact company for price

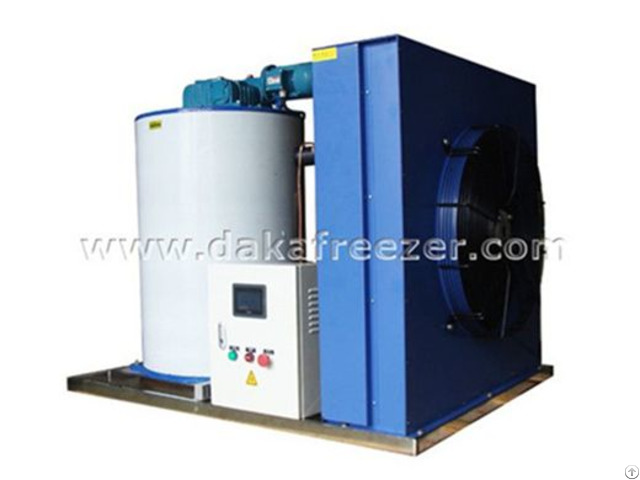

    Flake Ice Machine 2T/24h

    Flake Ice Machine 2T

    2T Flake Ice Machine

    Flake Ice Machine 2.5T

    Share:

    Ice production 2 Ton Per Day

    Fresh Water /Salt Water

    Air Cooling/Water Cooling

    Flake Ice Thickness: 1.5-2.2mm

    Refrigerant: R22/R404A

    With PLC Controller

    Flake Ice Machine 2T/24H

    DAKA FREEZER commercial ice machines are widely used in supermarket chains, hotels, seafood markets, food processing and vegetable preservation, etc

    Ice production from 300kg/d-2500kg/d, which can meet the commercial requirements.

    DAKA FREEZER commercial ice machines are equipped with various brands of compressors such as the danfoss/Copeland scroll and the semi-closed piston.

    The storage bin made of double-sided stainless steel.

    Customers can choose integral type or separate type (unit + ice bin) according to the different application.

    The flake ice machine can start and stop automatically to make the evaporator mechanical operation system and water suppling circulation system

    coordingation matched and work safely and effictiently under the function of PLC programmable controller.

    The whole ice making process is equipped with intelligent computer protection such as water shortage, ice full, high and low pressure alarm, phase sequence protection and overload protection etc.

    When there is a failure, the PLC stops the unit automatically for protection and displays the status of the indicator light at the input point.

    When the fault is restored, the PLC will start the unit automatically, realizing full automatic control.

    Model DFI-2.0T

    Capacity 2000kg/24h

    Cooling capacity 13kW

    Evaporating temp.

    -20℃

    Condensing temp.

    40℃

    Standard water temperature 20℃

    Power install 9.56KW

    Compressor 7.04KW

    Reduction gear 0.18 KW

    Water pump 0.09KW

    Condenser fan 0.8 KW

    Salt water dosing pump 0.016KW

    Power supply 380V/50Hz/3P

    Water pressure 0.1Mpa-0.5Mpa

    Refrigerant R404a

    Ice temperature -5℃

    Water consumption 0.084M3/h

    Water pipe 1/2’

    Net weight 600kg

    Machine size 1500*1100*1100mm

    Ice bin Dimension(mm) 1500*1408*1300mm

    Technical Parameters

    DAKA FREEZER commercial flake ice machine(ice production 0.3T/0.5T/1T/1.5/2T/2.5T/ 24H)

    1 - Standard cooling method: Air cooling, if need water cooling, it can be customized according to customer requirements.

    2 - Standard conditions: Ambient temperature 25℃, water inlet temperature 15℃, evaporating temperature -22℃, condensing temperature 40℃.

    3 - Thickness of the flake ice: 1.5mm-2.2mm, it can be adjustable.

    4 - The above parameters will be changed subject to the technical invotation without further notice.


    Company Contact:


    • Phone: 020-81778146

    • Address: Building K, South District, Wangzhitang Industrial Zone, Longxi Avenue, Liwan District, Guangzhou, guangzhou , guangdong , China

    • Email: Email


    Published date: July 22, 2019

    • Business Description: Guangzhou DAKA Refrigeration Equipment Co., Ltd. is a professional refrigeration equipment manufacturers, DAKA FREEZER brand production of Contact Plate freezer, flake ice machine, tube ice machine, block ice machine,cube ice machine,heat pump dryer room and cold storage complete sets of equipment for global aquatic processing, meat processing, offshore fishing , poultry slaughtering, agricultural products processing, supermarkets, chemical dyes, mines, concrete buildings, artificial ski resorts and other industries to provide high-quality, environmentally friendly energy-saving products.
