Flake Ice Machine 20 Ton Per Day - China

Flake Ice Machine 20 Ton Per Day

high standard hygiene Flake Ice Machine

easy operate Flake Ice Machine

Share: Flake Ice Machine 20 Ton Per Day

Fresh Water /Salt Water

Air Cooling/Water Cooling

Flake Ice Thickness: 1.5-2.2mm

Refrigerant: R22/R404A

With PLC Controller

Flake Ice Machine 20T/24H

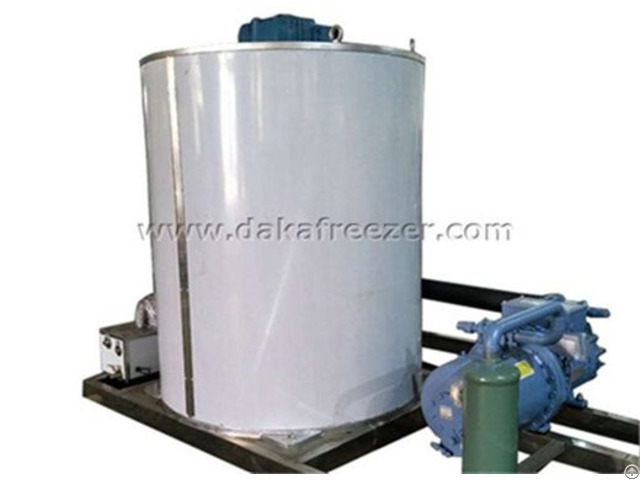

DAKA FREEZER Large-scale industrial flake ice machine(ice production 20T/25T/30T/40T/50T/24H )

Large-scale industrial flake ice machines are specialized in nuclear power construction, environmental protection engineering and railway construction etc.

The large industrial flake ice machines are equipped with Refcomp screw compressor to ensure sufficient ice production and improve energy efficiency.

Advantages of the flake ice machine:

1 - The ice machine has high ice efficiency and small loss of cooling capacity.

2 - Good quality of the flake ice and is dry and not bonded.

3 - The flake ice produced by the flake ice machine is rich in variety, simple in structure

4 - PLC programmable controller of the flake ice machine, with stable performance, random control

5 - The flake ice machine is easy to operate, high standard of hygiene

6 - The flake ice machine with the perfect fault protection device.

Technical Parameters

Model DFI-20T

Capacity 20000kg/24h

Necessory cooling capacity 120KW

Compressor Cooling capacity 146kW

Evaporating temp.

-20℃

Condensing temp.

40℃

Standard water temperature 20℃

Power install 80KW

Compressor 95HP 70KW

Reduction gear 1.5KW

Water pump 5.5KW

Cooling Tower 1.5KW

Power supply 380V/50Hz/3P

Water pressure 0.1Mpa-0.5Mpa

Refrigerant R22/R404a

Ice temperature -5℃

Flake ice thickness 1.8mm (1.5mm-2.2mm adjustable)

Water pipe 3/4”

Net weight 2600kg

Machine size 3900mm×2100mm×2200mm


Cold storage room 3700*2600*2300mm

1 - Standard conditions: Ambient temperature 25℃, water inlet temperature 15℃, evaporating temperature -22℃, condensing temperature 40℃.

2 - Thickness of the flake ice: 1.5mm-2.2mm, it can be adjustable.

3 - The above parameters will be changed subject to the technical invotation without further notice.
