Flake Ice Machine 2 5t 24h - China

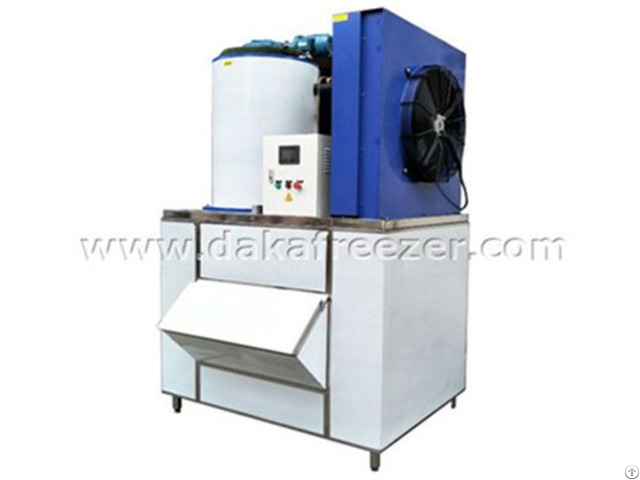

Flake Ice Machine 2.5T/24h

Flake Ice Machine 2.5T

2.5T Flake Ice Machine Share: Ice production 2.5 Ton Per Day

Fresh Water /Salt Water

Air Cooling/Water Cooling

Flake Ice Thickness: 1.5-2.2mm

Refrigerant: R22/R404A

With PLC Controller

Flake Ice Machine 2.5T/24H

DAKA FREEZER commercial ice machines are widely used in supermarket chains, hotels, seafood markets, food processing and vegetable preservation, etc

Ice production from 300kg/d-2500kg/d, which can meet the commercial requirements.

DAKA FREEZER commercial ice machines are equipped with various brands of compressors such as the danfoss/Copeland scroll and the semi-closed piston.

The storage bin made of double-sided stainless steel.

Customers can choose integral type or separate type (unit + ice bin) according to the different application.

The flake ice machine can start and stop automatically to make the evaporator mechanical operation system and water suppling circulation system

coordingation matched and work safely and effictiently under the function of PLC programmable controller.

The whole ice making process is equipped with intelligent computer protection such as water shortage, ice full, high and low pressure alarm, phase sequence protection and overload protection etc.

When there is a failure, the PLC stops the unit automatically for protection and displays the status of the indicator light at the input point.

When the fault is restored, the PLC will start the unit automatically, realizing full automatic control.

Technical Parameters

Model DFI-2.5T

Capacity 2500kg/24h

Cooling capacity 16.2kW

Evaporating temp.

-20℃

Condensing temp.

40℃

Standard water temperature 20℃

Power install 9.88KW

Compressor 8.59KW

Reduction gear 0.37 KW

Water pump 0.12KW

Condenser fan 0.8 KW

Salt water dosing pump 0.016KW

Power supply 380V/50Hz/3P

Water pressure 0.1Mpa-0.5Mpa

Refrigerant R404a

Ice temperature -5℃

Water consumption 0.105 M3/h

Water pipe 1/2’

Net weight 600kg

Machine size 1700*1200*1200 mm

Ice bin Dimension(mm) 1700*1630*1400 mm

DAKA FREEZER commercial flake ice machine(ice production 0.3T/0.5T/1T/1.5/2T/2.5T/ 24H)

1 - Standard cooling method: Air cooling, if need water cooling, it can be customized according to customer requirements.

2 - Standard conditions: Ambient temperature 25℃, water inlet temperature 15℃, evaporating temperature -22℃, condensing temperature 40℃.

3 - Thickness of the flake ice: 1.5mm-2.2mm, it can be adjustable.

4 - The above parameters will be changed subject to the technical invotation without further notice.

Would you like some more information or to order your new machine….

Email Us or call 86-20-81778146
