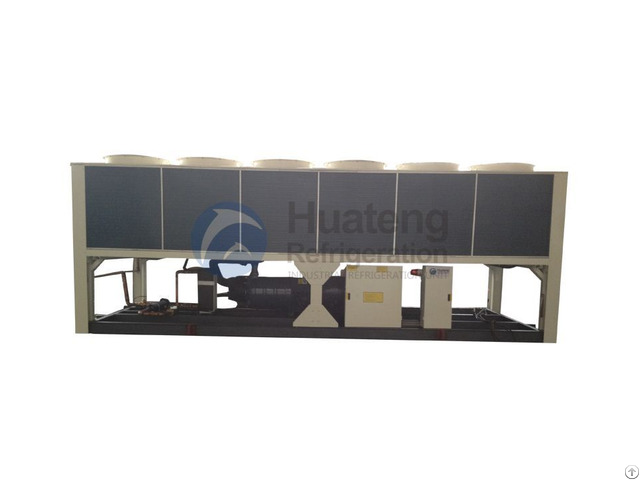

Commercial Air Cooled Screw Chiller - China

double screw Air Cooled Screw Chiller, Finned type Air Cooled Screw Chiller

Description:

The series air cooled screw type chiller cooling capacity from 85KW to 1550KW.

This series units integrates the characteristics of many other products, using imported semi-closed screw compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain.

The user just need simply connect the pipeline of the water system and the required power supply, then can put into operation.

This series of chillers is widely used: it can provide process chilled water for industrial and mining enterprises such as textile, chemical and petroleum.

The manufacturing technology of this product is mature and stable and reliable.

Features of chiller:

1 - Environmental protection

2 - Energy efficient

3 - Adopt international brand compressor

4 - The system stable and reliable.

5 - Electronic expansion valve throttle, adjust the range more accurate.

6 - Modular design of the unit, the free combination of up to 10 modules can be connected, any one can be set to be main module.

Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective Model HTK-M220F/2 HTK-M280F/2 HTK-M310F/2 HTK-M390F/2 HTK-M420F/2 HTK-M510F/2 HTK-M580F/2 HTK-M670F/2

Cooling

Capacity KW 221 275 310 391 417 514 580 670 Kcal/Hr 190060 236500 266600 226260 358620 442040 498800 576200 RT 62.84 78.19 88.14 111.17 118.57 146.15 164.91 190.5

Power 50HZ 3P-380V-50HZ

Input power(KW) 75.2 86.1 97.3 131 139.6 159.9 178.6 208.1

EER COP 2.94 3.19 3.19 2.98 2.99 3.21 3.25 3.22

Freezing medium R134a

control mode Thermal expansion valve

Comprosser Mode Semi-closed double screw Working style Y-Δ/Δ-Δ Capacity 0, 12.5%, 25%, 37.5%, 50%, 62.5%, 75%, 87.5%, 100%

Condensor Mode Finned type Cooling air tempreture In 35℃/Out 45℃ Wind flow (m³/h) 120000 180000 180000 180000 240000 240000 294000 294000 Fan quantity 8 12 12 12 16 16 20 20 Motor power(KW) 0.85*8 0.85*12 0.85*12 0.85*12 0.85*16 0.85*16 0.85*20 0.85*20

Evaporater mode Efficient finned tube filled with liquid Freeze water tempreture In 12℃/Out 7℃ Freeze water flow (m³/h) 38 47.3 53.3 67.3 71.7 88.4 99.8 115.2 Pressure loss (Kpa) 58 58 58 63 63 65 65 65 waterpipe DN80 DN100 DN100 DN100 DN100 DN125 DN125 DN125

Safeguard High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection; high pressure safety valve protection; oil pressure protection; exhaust over heat protection

Weight Kg 3800 4700 5000 5500 7000 7200 8000 8260

Size L(mm) 4040 6000 6000 6000 7040 7040 8040 8040 W(mm) 2200 2200 2200 2200 2020 2020 2020 2200 H(mm) 2260 2260 2260 2280 2680 2680 2680 2680

Noise(dB) 74 74 73 73 74 74 75 75 Note:

1 - Above cooling capacity parameters are all based on the conditions of dry bulb temperature 35℃, water temperature (in) 12℃, water temperature(out)7℃

2 - We can make order according to your requirement.

3 - Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.

We are pleased to deliver tube type Air Cooled Screw Chiller, Commercial Air Cooled Screw Chiller, Semi closed Air Cooled Screw Chiller.

Safe payment and on time deliver time will give you.

External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles.
