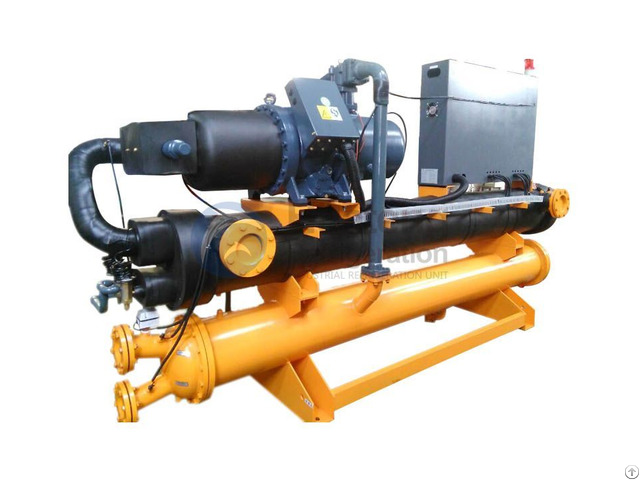

China Custom Auto Switch Water Cooled Screw Chiller

Description:

The series water chiller adopts efficient semi-closed screw compressor.

the compressor adopts a 5: 6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated.

It is automatically adjusted according to load changes and is more energy efficient.

The unit heat exchanger adopts high-efficiency heat exchange tube to improve the refrigeration efficiency, and the unit is equipped with multiple protections to make the unit operate safely and reliably.

Features of chiller:

1 - Employing original single/double SCREW compressor, Compressor may according loading auto-adjust, add level sensor for prevent compressor low-loading to luck-oil, extent use life

2 - Employing all-new imported high class component

3 - Employing two sets of compressor which can be used jointly or independent

4 - Switch control, easy operation and maintenance

5 - The weld of brass pipe is non-oxidization

6 - Condenser and Evaporator both to conform GB150, GB151, TB/T4750-2003, operation safe Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective Water cooled screw chiller(Environmental protection)

Model HTK-M200 HTK-M220 HTK-M250 HTK-M270 HTK-M300 HTK-M350 HTK-M400 HTK-470 HTK-M530 HTK-M600 HTK-M660 HTK-M750 HTK-M840

Cooling KW 195 220 250 265 297 350 400 466 530 598 662 748 835

Capacity Kcal/Hr 167700 189200 215000 227900 255420 301000 344000 400760 455800 514280 569320 643280 718100 RT 55.44 62.55 71.08 75.35 84.45 99.52 113.73 132.5 150.7 170.03 188.23 212.68 237.42

Power 50HZ 3P-380V-50HZ

Input power(KW) 41.4 46.1 51.6 55.4 58.9 67.8 78.3 90.9 103 116.2 128.7 145.3 162.3

EER COP 4.71 4.77 4.84 4.78 5.04 5.16 5.11 5.13 5.15 5.15 5.14 5.15 5.14

Freezing medium R134a

control mode Thermal expansion valve

Comprosser Mode Semi-closed double screw Working style Y-Δ/Δ-Δ Capacity 0-25%-50%-75%-100%

Condensor Mode Efficient external thread shell and tube type Cooling water In 30℃/Out 35℃ tempreture Cooling water flow (m³/h) 41.9 47.3 53.8 57 63.9 75.3 86 100.2 114 128.6 142.3 160.8 179.5 Pressure loss (Kpa) 55 55 58 58 58 61 61 63 65 65 66 67 67 waterpipe DN80 DN80 DN100 DN100 DN100 DN100 DN125 DN125 DN125 DN150 DN150 DN150 DN200

Evaporater mode Efficient internal thread shell and tube type Freeze water In 12℃/Out 7℃ tempreture Freeze water flow (m³/h) 33.5 37.8 43 45.6 51.1 60.2 68.8 80.2 91.2 102.9 113.9 128.7 143.6 Pressure loss (Kpa) 52 55 58 58 58 58 61 61 61 62 64 64 64 waterpipe DN80 DN80 DN100 DN100 DN100 DN100 DN125 DN125 DN125 DN150 DN150 DN150 DN200

Safeguard High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection; high pressure safety valve protection; oil pressure protection; exhaust over heat protection

Units Weight Kg 980 1250 1590 1720 2040 2460 2780 3060 3200 3850 4100 4300 4480

Size L(mm) 2300 2300 2800 3200 3200 3600 3600 3800 4000 4000 4100 4100 4100 W(mm) 1100 1100 1250 1250 1360 1360 1360 1400 1480 1480 1500 1500 1500 H(mm) 1420 1420 1530 1620 1620 1760 1760 1780 1820 1820 1900 1900 1900

Noise(dB) 72 72 73 74 74 75 75 76 77 77 78 79 81 Note:

1 - Above cooling capacity parameters are all based on the conditions of condensation temperature 40℃, evaporation temperature 2℃.

2 - We can make order according to your requirement.

3 - Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.
