Description:

The series water chiller adopts efficient semi-closed screw compressor.

the compressor adopts a 5: 6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated.

It is automatically adjusted according to load changes and is more energy efficient.

The unit heat exchanger adopts high-efficiency heat exchange tube to improve the refrigeration efficiency, and the unit is equipped with multiple protections to make the unit operate safely and reliably.

Min.

outlet temperature can be -60℃.

Features of chiller:

1 - The unit adopts a semi-closed screw compressor.

The compressor adopts a 5: 6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated.

It is automatically adjusted according to load changes and is more energy efficient.

2 - The unit heat exchanger adopts high-efficiency heat exchange tube to improve the cooling efficiency.

At the same time, in order to reduce the lubricating oil entering the heat exchanger, the unit increases the secondary oil content, minimizes the amount of oil entering the heat exchanger, and passes the specially designed ejector.

The oil return device directs the lubricating oil in the heat exchanger back to the compressor to improve the refrigeration efficiency of the unit and also improve the reliability of the unit operation.

3 - The unit is equipped with multiple protections to make the unit operate safely and reliably.

The unit adopts direct cooling mode, which reduces the loss caused by the intermediate heat exchange and greatly reduces the running cost.

4 - Environmentally friendly 134a refrigerant is used to improve unit operating efficiency.

The unit is equipped with multiple protections to make the unit safe and reliable.

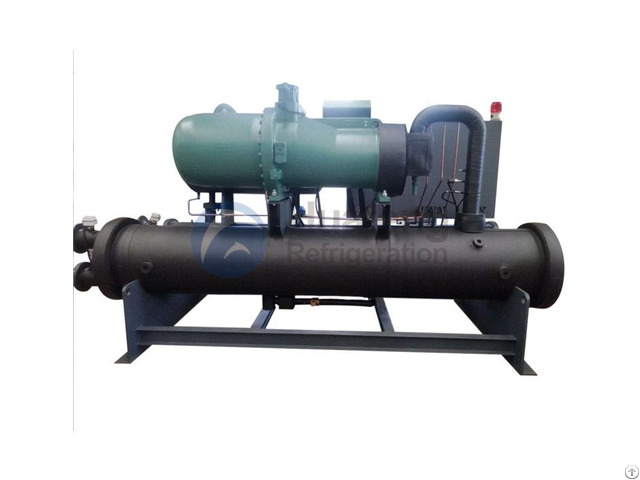

Flooded type water cooled screw refrigeration unit (Environmental protection)

Model HTK-M300M HTK-M400M HTK-M450M HTK-M530M HTK-M600M HTK-M640M HTK-M680M HTK-M750M HTK-M850M HTK-M950M

Cooling KW 300 396 453 530 600 640 678 750 848 947

Capacity Kcal/Hr 258000 340560 389580 455800 516000 550400 583080 645000 729280 814420 RT 85.3 112.6 128.8 150.7 170.6 181.97 192.78 213.25 241.11 269.26

Power 50HZ 3P-380V-50HZ

Input power(KW) 55.8 67.8 78.3 91 103 109.7 116.2 128.7 145.4 162.3

EER COP 5.38 5.84 5.79 5.82 5.83 5.83 5.83 5.83 5.83 5.83

Freezing medium R134a

control mode Electronic expansion valve

Comprosser Mode Semi-closed double screw Working style Y-Δ/Δ-Δ Capacity 0-25%-50%-75%-100%

Condensor Mode Efficient external thread shell and tube type Cooling water In 30℃/Out 35℃ tempreture Water discharge (m3/h) 64.5 85.1 97.4 114 129 137.6 145.8 161.3 182.3 203.6 Pressure loss (Kpa) 55 55 55 58 58 58 60 61 61 65 waterpipe DN100 DN125 DN125 DN125 DN150 DN150 DN150 DN150 DN200 DN200

Evaporater mode Efficient finned tube filled with liquid Cooling water In 12℃/Out 7℃ tempreture Water discharge (m3/h) 51.6 68.1 77.9 91.2 103.2 110.1 116.6 129 145.9 162.9 Pressure loss (Kpa) 52 55 55 58 58 58 58 58 61 61 waterpipe DN100 DN125 DN125 DN125 DN150 DN150 DN150 DN150 DN200 DN200

Safeguard High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection; high pressure safety valve protection; oil pressure protection; exhaust over heat protection

Units Weight Kg 1320 1480 2130 2560 3100 3500 3800 3850 4070 4150

Size L(mm) 3600 3600 3600 3800 3800 3800 4000 4000 4000 4000 W(mm) 1460 1460 1460 1560 1560 1640 1760 1760 1760 1760 H(mm) 1520 1520 1630 1630 1650 1650 1800 1860 1910 1910

Noise(dB) 73 75 75 76 76 76 76 78 78 80 Note:

1 - Above cooling capacity parameters are all based on the conditions of condensation temperature 40℃, evaporation temperature machine5℃.

2 - We can make order according to your requirement.

3 - Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.
