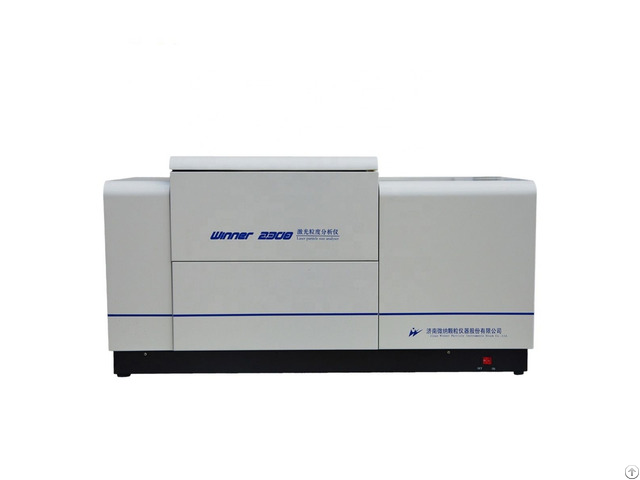

Winner 2308b Laser Particle Size Analyzer - China

Winner2308B intelligent full automatic wet&dry laser particle size analyzer adopt laser diffraction theory(Mie and Fraunhofer diffraction), measure size is from 0.1μm/0.01μm to 1200μm/2000μm, Which offer reliable and repeatable particle size analysis for a diverse range of applications.

It use dual-beam& multiple spectral detection systems and side light scatter test technology to significantly improve precision and performance of test, It’s the prior choice for industrial production quality control departments and research institutions.

Main Features (1) The laser particle size analyzer adopts an integrated design of dry and wet sample dispersion systems.

Winner2308 intelligent laser particle size analyzer is the first laser particle size analyzer in China that integrates dry and wet dispersion testing.

It successfully solves the problem of integrating dry and wet technology and realizes one-click switching.

It is suitable for testing distribution of all particle sizes from 0.01μm-2000μm.

Particles.

(2) The wet and dry integrated particle size analyzer is equipped with an intelligent fully automatic operating system and a manual operation mode, allowing you to choose freely.

The intelligent automatic operation mode is adopted to realize one-click testing.

Just add samples according to the prompts and click "Test", and all processes will be completed automatically, which not only reduces the testing workload, but also eliminates interference.

Human factors further improve the accuracy and authenticity of test results.

Wet method: complete water supply with one click, ultrasonic dispersion, circulation, detection, cleaning, data recording, data analysis, saving, and printing are automatically completed in just 2 minutes.

Dry method: It takes 1 minute to complete operations such as dust collection, compressed air supply, feeding, detection (the patented turbulent dispersion technology and the sample window of the negative pressure device fully disperse the sample), and data processing with one click.

(3) The wet and dry particle size analyzer adopts stable and unique optical path system patented technology

The patented technology of focusing Fourier transform optical path makes scattered light not limited by the lens aperture.

It adopts a dual-spectrum planar optical path design, with 127 photodetector channels, a maximum detection angle of 145 degrees, and a minimum detection angle of 0.0155 degrees.

It adopts dual laser positive With cross-light patented technology, the measurement range is effectively extended to 2000 microns.

Using Canon Fourier lens imported from Japan to ensure stability and accuracy

Particle measurement.

(4) Dry and wet integrated laser particle size analyzer automatic optical path alignment system, The four-way hybrid stepper motor in the optical component automation system has a fine precision of 0.1um, which keeps the optical path of the instrument in the best state, eliminating the trouble and difficulty of manually adjusting the optical path, while also enhancing accuracy and stability.

Test Results.

(5) Full built-in Sample Wet and dry dispersion system, One key switch.

Auto wet dispersion system, SOP realize one key operation.

set mechanical stirring, ultrasonic dispersion, and circulation path in one, It ensures particles uniform dispersion and distribution, avoids many bad phenomenon, such as uneven distribution of particles, large particles deposit because of the long outer dispersing system tube, And it guarantees the representativeness of test result.

For dry dispersion system, Turbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient dispersion, ensure good test, apply to test powders range from 0.1 micron to 1200 micron.

(6)Instrument Software

Original Unconstrained free fitting patent technology collect scattering data during the measurement process, make particle analysis not be restricted by any functions, truly reflect particles size distribution, The instrument provide high precision data with 10Khz data acquisition time.
