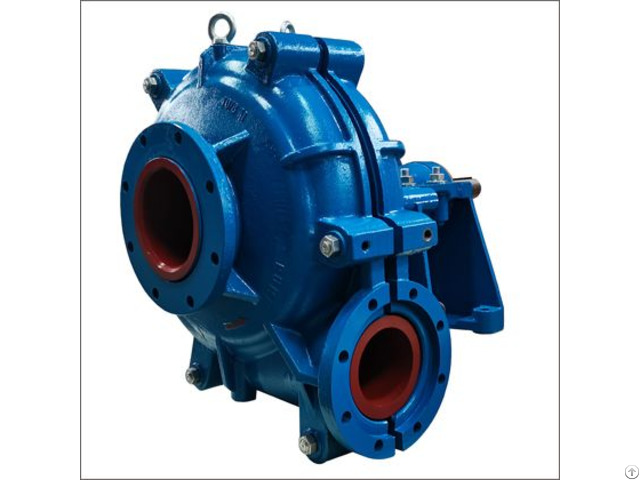

Slurry Pump 10 8e M 200em - China

Brand: CNSME

Model Number: SM/200E

Certificate: CE/ISO

Place of Origin: Hebei, China

Minimum Order Quantity: 1set

Delivery Time: 7-15 working days

Payment Terms: T/T, Western Union

Supply Ability: 100 Sets per Month

Packaging Details: Standard export packaging

General Introduction:

▶Our horizontal slurry pumps are designed for heavy-duty applications such as mining, minerals processing, mill discharge, power plants, tailings, and other industrial applications, for maximum abrasion, erosion, and corrosion resistance.

▶The slurry pumps are in a wide range of sizes, available with both high chrome and rubber wearing parts.

Components like impeller and volute come in a range of hard metal types and elastomers to suit the specific application.

▶Different shaft seal types are available to suit every requirement, including gland packing seal, expeller seal, and mechanical seal.

▶Our metal-lined slurry pumps are designed for heavy-duty industrial applications, to handle the most arduous slurries.

▶Wear resistant cast alloys are used for slurry pump liners and impellers where conditions are not suited to rubber, such as with coarse or sharp-edged particles, or on duties having high impeller peripheral velocities or high operating temperatures.

Pump Structure:

01 - Labyrinth Lock Nut 02 - Shaft 03 - Bearing Housing 04 - Grease Retainer 05 - Bearings 06 - End Cover 07 - Labyrinth 08 - End Cover Screw Set

09 - Gland Packing 10 - Shaft Sleeve 11 - Lantern Restrictor 12 - Shaft Spacer 13 - Clamp Washer 14 - Adjusting Screw 15 - Clamp Bolt

16 - Frame Plate Stud 17 - Frame Plate 18 - Cover Plate Bolt 19 - Stuffing Box 20 - Seal 21 - Volute Seal 22 - Frame Plate Liner Insert 23 - Volute Liner

24 - Impeller 25 - Throatbush 26 - Volute Seal 27 - Cover Plate 28 - Cover Plate Nut 29 - Gland Assembly 30 - Gland Bolt

Applications:

Process Pumps; Bottom/Fly Ash; Lime Grinding

Mill Discharge; Fine Tailings; Flotation; Minerals Concentrate

Medium to Low-Pressure Tailings; Oil Sands; Minerals Sands
