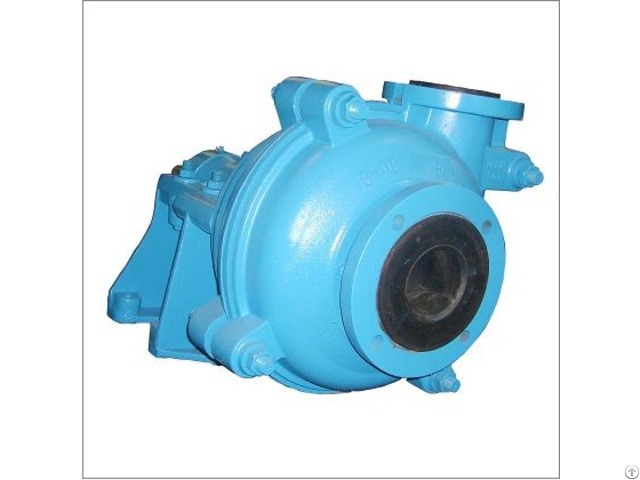

Rubber Lined Mining Slurry Pump Shr 75c 3 Inch - China

Brand: CNSME

Model Number: SHR/75C

Certificate: CE/ISO

Place of Origin: Hebei, China

Minimum Order Quantity: 1set

Delivery Time: 7 working days

Payment Terms: T/T, Western Union

Supply Ability: 50 Sets per Month

Packaging Details: Standard export packaging

● Flow rate : 79.2-180m3/hr

● Head H(m): 5-34.5m

● Speed: 800-1800rpm

● Efficiency: Max.

59%

● Materials: Impeller Natural Rubber

● Impeller: 5-Vane Closed Type.

D3147R55

● Vane Diameter(mm): 245mm

● Power: Max.

30Kw

● Color: Depend on customers’ requirements

● Weight: 236KG

● NPSH (m): 3-5

● Warranty: 1-year Warranty (except wet-end parts)

Introduction:

The advantages of SHR75C rubber lined slurry pump:

1 - The anti-corrosive rubber liner has features of a wide range of performance, high efficiency, and high-performance cost ratio.

2 - Rubber discharge end is light, thus easy to install and maintain.

3 - As the name suggests, the anti-corrosive rubber liner is made of rubber which is of high elasticity and chemical stability.

The rubber also absorbs noise and vibration, which is more anti-corrosive than high chromium alloy

4 - Some metallurgy design and research institutes and universities of science and technology provide lots of technological supports.

Thus, our rubber discharge end is trustworthy and effective.

5 - A series of quality tests are carried out when the rubber mill discharge liner is being used.

Typical Applications:

Tailings

Heavy Mining

Ash Handling

Cyclone Feeds

Pulp and Paper

Corrosive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Heavy Refusal Removal
