Pz 7 Electric Dry Shotcrete Machine - China
price: 500.00 Dollar US$
CHINA COAL 0001

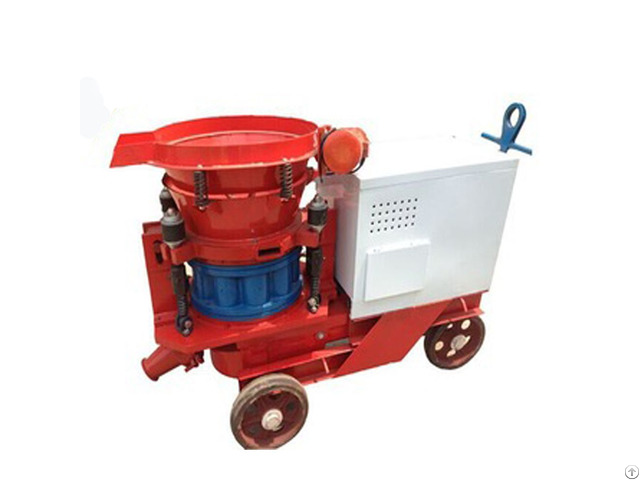

PZ-7 Electric Dry Shotcrete Machine
Introduction of PZ-7 Electric Dry Shotcrete Machine
PZ-7 Electric Dry Shotcrete Machine can be used for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns’ inner liner.
The characteristics as follows:
(1)Efficient electric motor
(2) Perfect hermetic function and longer serviceable life
(3) Material flow uniformity stable
(4)Improved performance and high quality
Parameter of PZ-7 Electric Dry Shotcrete Machine Model PZ-7
Capacity (m3/h) 7
Max.
Conveying Distance (Horizontal, Vertical m) 200, 20
Use material ratio(Cement/Sand) 2001-3-5
Use material water-cement ratio ≤0.4
Max.
Aggregate Diameters (mm) 20
Feeding pipe inner diameters(mm) 64
Rotor Diameter(mm) 480
Working pressure (MPa) 0.4-0.6
Air consumption (m3/min) 8-10
Motor Model Y132-6-7.5KW
Voltage(V) (according to customer's special requirement) 380, 660, etc
Overall size (mm) 1500*700*1280
Overall weight (kg) 700
Company Contact:
- Posted By: Shandong China Coal Group
- Phone: 865372350961
- Address: No.11 Kaiyuan Road, Jining , China
- Email:
- Website: https://www.chinacoalintl.com
Published date: August 29, 2018
- Business Description: Shandong China Coal Industrial&Mining Supplies Group Co., Ltd
(hereinafter referred to as china coal) is a group company .
which is a
collection of e commerce, machinery manufacturing, software, research
and development, modern logistics of large diversified industrial group.
