Pz 5 Dry Concrete Spray Equipment - China

CHINA COAL 0001

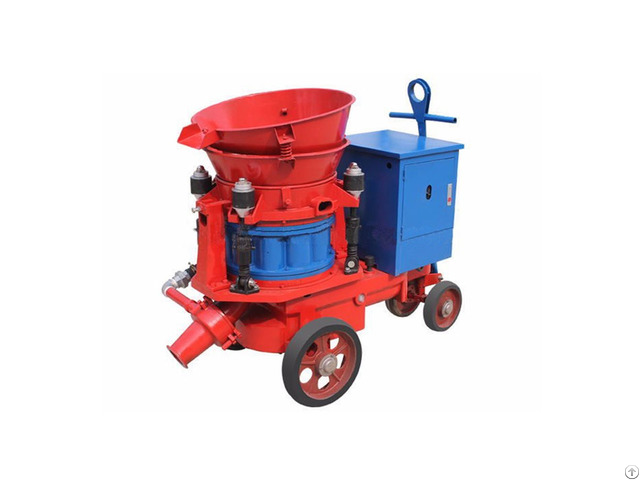

Pz-5 Dry Concrete Spray Equipment

Introduction of Pz-5 Dry Concrete Spray Equipment

PZ-5 Dry Concrete Spray Equipment is the most ideal device for the concrete anchor spray construction, wet spray and moist spray.

And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects.

And uniquely-made rubber bushing block on the swirler benefits mixture delivery.

PS-6 has stable performance, is convenient for maintenance, saves energy, has a long service life, protects environment, and improves the spraying layer quality.

Our product advantages as follows: 1 - Excellent Performance: 2 - Tightly compact, attractive appearance, 3 - Stable and durable, easy to operate and maintain.

4 - Applicable for all kinds of working environment.

5 - Mainly used for tunnel, underground work, slope protection and other concrete construction.

Parameter of Pz-5 Dry Concrete Spray Equipment

Model PZ-5

Capacity (m3/h) 5

Max.

Conveying Distance (Horizontal, Vertical m) 200, 20

Use material ratio(Cement/Sand) 2001-3-5

Use material water-cement ratio ≤0.4

Max.

Aggregate Diameters (mm) 20

Feeding pipe inner diameters(mm) 51

Rotor Diameter(mm) 438

Working pressure (MPa) 0.4-0.6

Air consumption (m3/min) 7-8

Motor Model Y132-6-5.5KW

Voltage(V) (according to customer's special requirement) 380, 660, etc

Overall size (mm) 1280*700*1280

Overall weight (kg) 600
