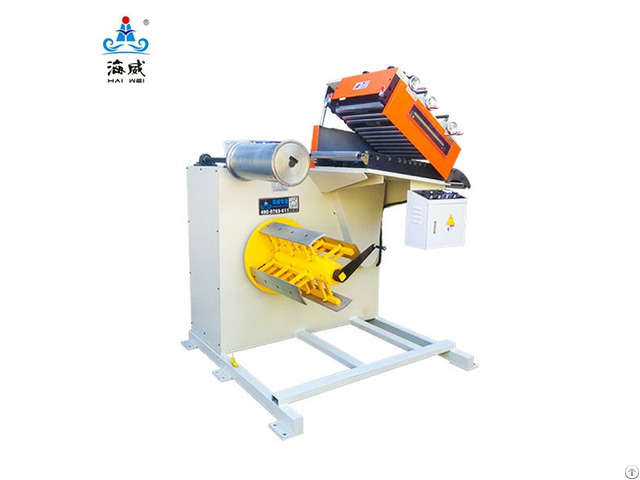

Decoiler Straightener Hwgj Series - China
price: 300.00 Dollar US$
1 - Suit for most of coiled materials, including HR, CR, aluminium, stainless steel, plastic, etc.
2 - Unique design that decoiler and straightener are integrated into a single machine maximizes floor space and enhance productivity.
3 - Decoiler and straightener are both motorized.
HWGJ models can automatically feed the metal strip.
4 - All rolls are made from heat-treated alloy steel with hard chrome plating and precision ground, and hardness is up to HRC60-62℃.
5 - Straightening rolls are power driven through a precision gear train.
6 - The straightener is divided into two parts to achieve higher straightening accuracy.
One section is equipped with 3 (Upper 2/Lower 1) straightening rolls; another section is equipped with 17 (Upper 8/Lower 9) straightening rolls.
7 - Pneumatic flip-top Straightener allows easy cleaning to prevent damaging the polished metal strip, which is suitable for delicate and thin material like Aluminum, Brass, Copper etc.
8 - It is more efficient and convenient that the gap between the upper and lower rolls is adjusted by three groups of worm gear.
9 - Equipped with inverter, HWGJ models are easy to adjust the feeding speed.
Company Contact:
- Phone: 86-769-81733966
- Address: South 3rd building, Yongda Road, Tianliao Industrial Area, Shipai Town, Dongguan , Guangdong , China
- Email:
- Website: https://www.coilfeed.com
Published date: March 14, 2019
- Business Description: HAIWEI INTELLIGENT, a professional stamping automation equipment manufacturer, is a collection of designs, research & development, productions and after-sales services, located in Dongguan China.
The main products are 3 in 1 uncoiler straightener feeder to load coil material automatically; free-standing uncoilers, straighteners, and feeders; 2D transfers, 3D transfers, and free-standing transfers.
Besides, variety of tech solutions, including cut to length line, press feed line, zigzag blanking line, meet customers' demands.
