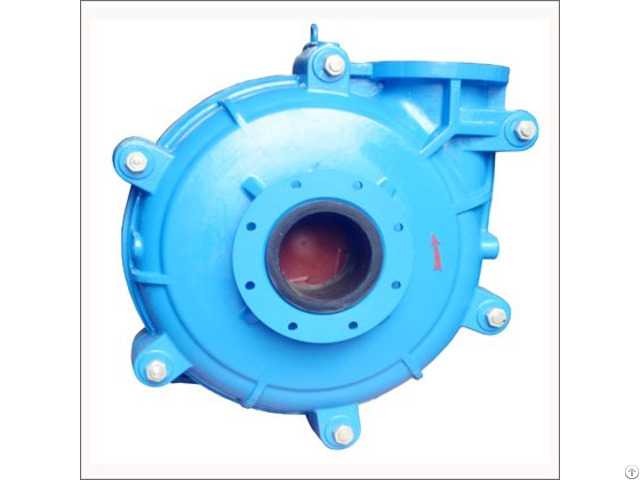

Ball Mill Underflow Slurry Pump Scr 450tu 18 Inch - China

Brand: CNSME

Model Number: 450MSR

Certificate: CE/ISO

Place of Origin: Hebei, China

Minimum Order Quantity: 1set

Delivery Time: 7-15 working days

Payment Terms: T/T, L/C

Supply Ability: 30 Sets per Month

Packaging Details: Standard export packaging MSR pumps belong to SME SCR-SCU series pumps which are specially designed for severe duty applications such as ball mill cyclone feed in minerals processing plants.

MS pumps are available in SCR and SCU two types of different constructions: MSR – 1 - Split Outter Casing — Ductile Iron 2 - Impeller — Hard Iron (A05, A49) 3 - Inner Liners: Elastomer (Natural Rubber, Neoprene, etc.

) 4 - Throatbush & Frame Plate Liner Insert — Available in Hard Metal ASTM A532 or Polymers.

MSU – Unlined, the material of Casing, Impeller, Throatbush, Frame Plate Liner Insert — High Chrome Alloy (Hard Metal White Iron).

Discharge Available in Sizes: from 150mm to 750mm Shaft Seal: Gland Packing Seal.

Features: Large-diameter, low speed, high-efficiency impellers; Latest wear-resistant materials; Interchangeable elastomer or metal liners, or unlined hard metal; Available reverse rotations offer plant design flexibility (CCW and CW rotations).

Performance Curves, Outline Dimensional Drawings, and Sectional Drawings are available.
