Aoi Female Nursing Pad Defect Inspection Equipment - China
price: 1.00 Dollar US$
Function

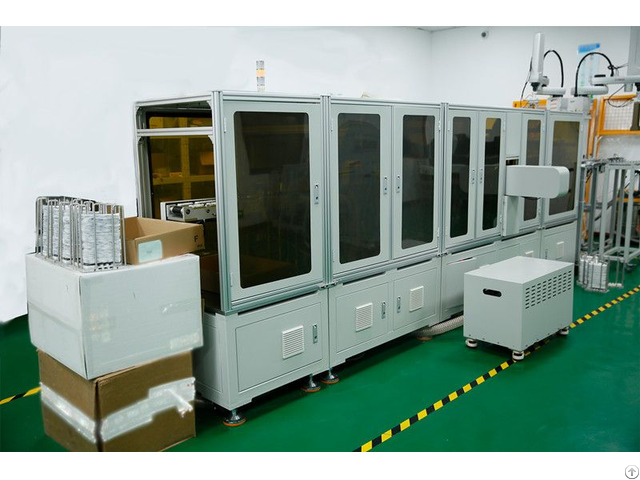

The Automatic equipment (DE-SRM ) is a kind of assembly line equipment for appearance defect inspection of nursing pads .
This set of AOI equipment includes a Receiving machine, a Feeding machine, and an AOI detector.
The AOI inspector performs online intelligent visual inspection on the incoming products and judge whether it is defective or not.
Application
Female nursing pads, male nursing pads, sanitary napkins Features
1 - AOI inspector : detect a variety of defects, such as material joints, jersey thread breakage, dirty front material, dirty back material, wrinkles, poor packaging, missing parts, etc.
2 - Automation function: direct access to the production line, high level of automation for receiving, loading and detection, achieving one-stop operation;
pecifications
Item Parameter
Object size : 50mm*140-70mm*170mm
Cycle time of Receiving machine : 0.12s/PCS
Cycle time for AOI inspector ; 1s/PCS
Accuracy ; 0.1mm
Overall dimension : 10500mm(L)*2100mm(W)*2450 mm(H)
Overall weight : 4500KG
Company Contact:
- Posted By: Suzhou PTC Optical Instrument
- Phone: +8618913228862
- Address: NO. 189 , Zhangji Road , Eocnomic Development Zone, Kunshan , China (Mainland), China
- Email:
- Website: https://www.ptc-stress.com/
Published date: January 31, 2021
- Business Description: PTC China is a national high-tech enterprise specializing in the design and manufacture of glass Surface Stress Meter , Polariscope , automatic Optical Inspection Equipment ( AOI ） and Vision Inspection System .
