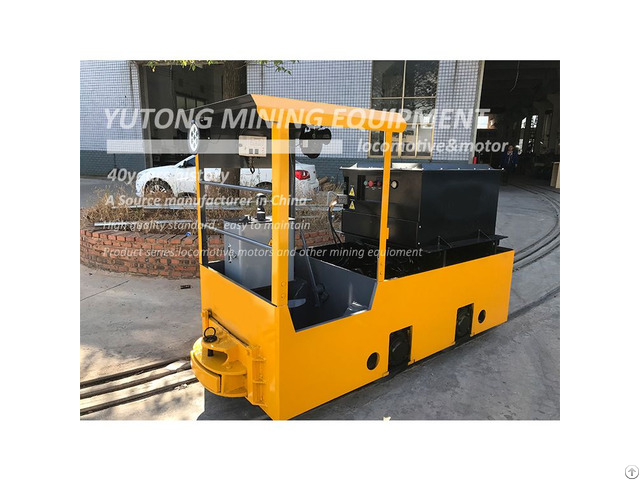

Small Mining Machinery 2 5 Ton Battery Electric Locomotive - China

Small Mining Machinery 2.5 Ton Battery Electric Locomotive Battery electric locomotive is a kind of track traction equipment powered by batteries, which is generally used in mines.

There are two types of battery electric locomotives, explosion-proof type and ordinary type.

The explosion-proof type is mainly used in coal mines.

There are also many options in terms of speed regulation and braking methods.

Speed control methods include resistance speed control, chopping speed control and frequency conversion speed control.

Braking methods include pure mechanical braking, hydraulic braking and compressed air braking.

In addition, electric braking can also be selected as an auxiliary braking method.

Total weight (t) : 2.5 ton

Track gauge (mm) : 600.762.900

Traction (KN) : 2.55

Max.

Traction (KN) : 6.13

Speed(km/h) : 4.54

Battery Voltage (V) : 48V

Battery Capacity (Ah) : 330

Power (KW) : 3.5 KWx1

Dimensions Length(mm) : 2330

Width(mm) : 914, 1076or 1212

Height(mm) : 1550

Wheelbase (mm) : 650

Wheel diameter (mm) : 460

Min Curve radius (m) : 5

Controller : Resistencia or IGBT

Braking method : Mechanical
