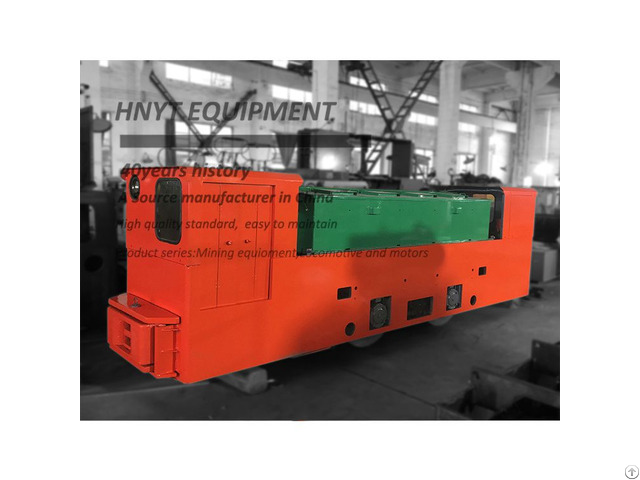

Cty8 Ton Underground Mining Locomotive Powered By Battery - China

8 ton underground mining locomotive powered by battery Track gauge (mm) : 500.600.762.900 Traction (KN) : 11.18 or 12.83 Max Traction (KN) : 19.62 Speed(km/h) : 6.2~7.8 Battery Voltage (V) : 110~140V Battery Capacity (Ah) : 440 Power (KW) : 11 or 15 KWx2 Dimensions Length(mm) : 4420 Width(mm) : 920, 1082 or 1220 Height(mm) : 1600 Wheelbase (mm) : 1100 Wheel diameter (mm) : 680 Min Curve radius (m) : 7 Controller : Resistencia or IGBT Braking method : Mechanical or air brake.

How to Maintain the Batteries of Explosion-Proof Mining Locomotives?

Maintaining the battery packs and explosion-proof power devices of explosion-proof mining locomotives is crucial for their safe and efficient operation.

Here are the key points to consider during routine maintenance:

1 - Battery Pack Maintenance:

Connection Polarity: ** Ensure that the battery terminals are not connected in reverse.

Check that the distance between the terminal connections and the outer shell of the battery box, as well as the distance between the terminals themselves, meets the specified requirements.

Insulation Resistance: The insulation resistance of the outer shell should not be less than 0.5 MΩ.

The leakage current of the outer shell should comply with the standards outlined in Table 4.6.

Electrolyte Spillage: If electrolyte spills, rinse the interior of the box with clean water and drain it using the acid drain valve.

Daily Inspections: Each shift, inspect the terminals, nuts, and connecting wires to ensure there is no loosening or damage.

If a battery shows signs of seal failure, casing cracks, or acid leakage, it should be replaced immediately.

2 - Explosion-Proof Power Device Maintenance:

Hydrogen Monitoring: Monitor the hydrogen concentration every shift.

If it exceeds 1%, cease operations immediately.

Check if the catalyst has been dampened or damaged.

Charging Room Conditions: Ensure that the methane concentration in the charging room is less than 0.5%, and the hydrogen concentration is below 0.5%.

Electrical Plug Connection: Before taking the locomotive out of the garage, connect the electric plug securely to avoid overheating.

Pre-Charging Checks: Before charging, check the internal hydrogen content of the battery pack.

If it is below 3%, you may open the cover; otherwise, take appropriate measures first.

If vigorous bubbling occurs during charging, cut off the power and wait 1–2 hours before closing the cover.

Anti-Acid Cap: Do not charge with the anti-acid cap on.

After charging, if the battery is not in use, do not cover it with the explosion-proof round cover.

When covering, ensure the electric heater plug is connected first.

Locking Mechanism: Before taking the locomotive out, ensure that the locking mechanism is securely locked.

In addition to these specific tasks, the daily maintenance of explosion-proof mining locomotives should also include the general maintenance tasks applicable to all locomotives.

A designated person should be responsible for inspecting the power devices to ensure they are safe and reliable.

By adhering to these maintenance practices, you can significantly enhance the safety, reliability, and longevity of your explosion-proof mining locomotive batteries and power devices.
