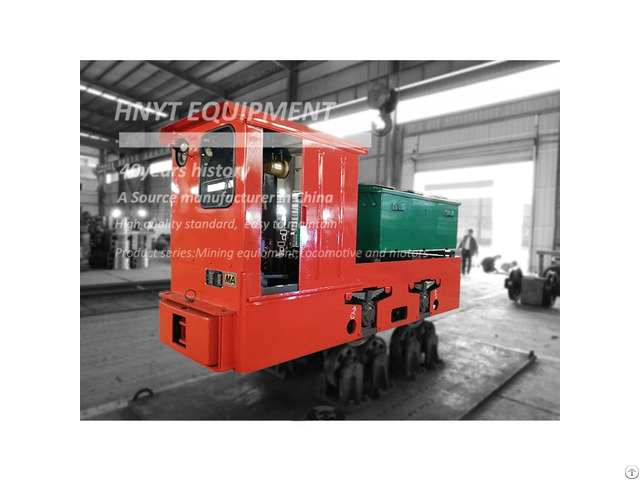

Cty5 Ton Battery Locomotive With Frequency Control - China

CTY5 ton battery locomotive with frequency control The traction force of a 5-ton battery locomotive with frequency control is influenced by several key factors, primarily adhesive weight and adhesion coefficient.

The maximum traction force of a 5-ton battery locomotive with frequency control is contingent upon the balance between adhesive traction force and adhesive weight.

This balance ensures that the locomotive operates without slipping.

If the traction force exerted by the motor exceeds the adhesive traction force, the locomotive's wheels may slip, leading to operational issues.

Similarly, the adhesive traction force is directly proportional to the adhesive weight, given a constant adhesion coefficient.

In other words, when the adhesive coefficient remains constant, the adhesive traction force increases in proportion to the adhesive weight applied to the locomotive's wheels.

Therefore, to optimize the traction force of a 5-ton battery locomotive with frequency control, it is essential to consider both the adhesive weight and adhesion coefficient.

By maintaining a balance between these factors, operators can ensure that the locomotive operates efficiently and effectively, delivering reliable performance in various operational conditions.

Adhesive / total weight (t) : 5 ton

Track gauge (mm) : 500, 600.762.900

Traction (KN) : 7.06

Max.

Traction (KN) : 12.26

Speed(km/h) : 7

Battery Voltage (V) : 90V

Battery Capacity (Ah) : 385

Power (KW) : 7.5 KWx2

Dimensions Length(mm) : 3170

Width(mm) : 920, 1082or 1220

Height(mm) : 1550

Wheelbase (mm) : 850

Wheel diameter (mm) : 520

Min Curve radius (m) : 6

Controller : IGBT or frequency control

Braking method : Mechanical/Hydraulic brake
