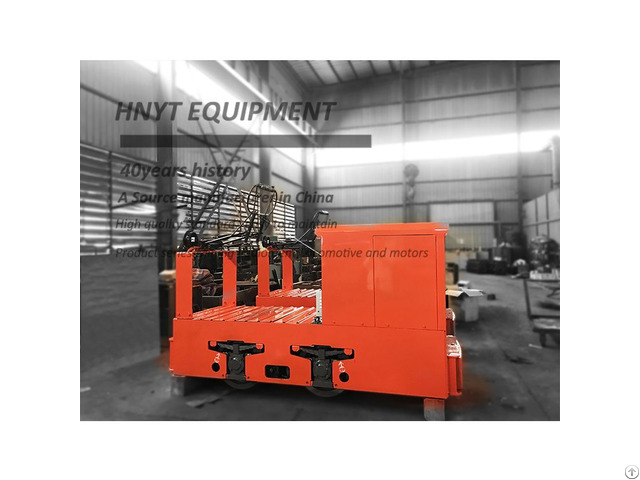

Cjy3 Ton Mining Trolley Xiangtan Locomotive For Gold Mine - China

3-ton mining trolley Xiangtan locomotive for gold mine In mining operations, encountering substantial starting current in Xiangtan electric locomotives can pose challenges.

This article aims to guide operators through the process of troubleshooting and resolving issues related to high starting current.

When faced with elevated starting current, the first step is to examine the insulation resistance of the traction motor in the mining Xiangtan electric locomotive.

The insulation resistance should be above 1 megaohm.

Following this, it's essential to inspect the resistance value of the resistor and ensure it meets the specified requirements.

**Inspection Process: **

1 - **Traction Motor Insulation Resistance: ** - Ensure the insulation resistance of the traction motor surpasses 1 megaohm.

- If the insulation resistance is below the specified threshold, corrective action, such as insulation system evaluation or replacement, may be necessary.

2 - **Resistor Resistance Check: ** - Examine the resistance value of the resistor in the electric locomotive.

- Confirm that the resistance aligns with the specified requirements for optimal performance.

**Resolving Issues: **

1 - **Insulation Resistance Concerns: ** - If the insulation resistance is below the recommended level, it is advisable to conduct a thorough inspection of the insulation system.

- Address any identified insulation issues promptly to restore the insulation resistance to an acceptable range.

2 - **Resistor Value Adjustment: ** - If the resistor's resistance is too small, leading to overheating and discoloration, consider replacing it with a larger resistor.

- Choosing a resistor with the correct resistance value is crucial to prevent overheating and ensure smooth locomotive startup.

Effectively managing high starting current in mining Xiangtan electric locomotives requires a systematic approach.

Regular inspections of insulation resistance and resistor values, coupled with timely corrective measures, ensure the locomotives operate efficiently and contribute to a safe and reliable mining environment.

Adhesive / total weight (t) : 3 ton

Track gauge (mm) : 500.600, 762 or 900

Traction (KN) : 6.1kN/ 5.74kN

Max.

Traction (KN) : 7.36kN

Speed(km/h) : 10.6km/h/ 7.5km/h

Voltage : 250 or 550V

Power (KW) : 6.5*2 or 12*1

Dimensions

Length(mm) : 2700mm/ 2750mm

Width(mm) : 940, 1082 or 1220mm

Height(mm) : 1550

Wheelbase (mm) : 816mm/ 850 mm

Wheel diameter (mm) : Φ650mm/ Φ520 mm

Min Curve radius (m) : 5.7-6 m

Controller : Resistance or IGBT

Braking method : Mechanical or Hydraulic Brake
