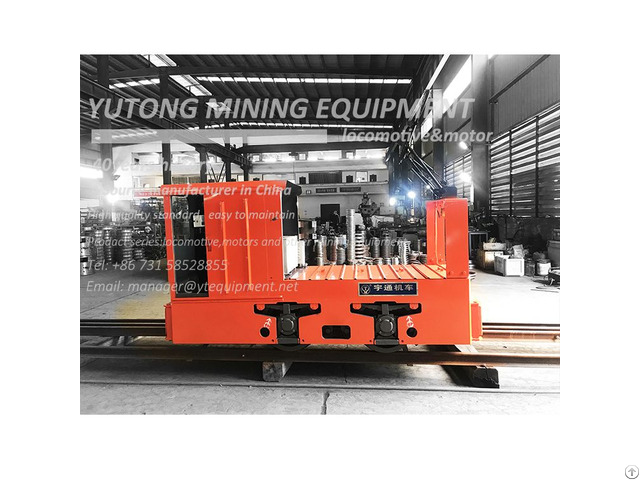

Cjy3 6gb Trolley Accumulator Locomotive For Metal Mine - China

Trolley electric locomotive is a kind of rail transportation traction equipment, powered by transformers and overhead lines.

Mainly used in mines where there is no risk of explosion.

Because of its special power supply mode, the trolley electric locomotive has no limit on the cruising range.

Therefore, it is suitable for long-term and long-distance use.

There are also many options in terms of speed regulation and braking methods.

Speed control methods include resistance speed control, chopping speed control and frequency conversion speed control.

Braking methods include pure mechanical braking, hydraulic braking and compressed air braking.

In addition, electric braking can also be selected as an auxiliary braking method.

Adhesive / total weight (t) : 3 ton

Track gauge (mm) : 500.600, 762 or 900

Traction (KN) : 6.1kN/ 5.74kN

Max.

Traction (KN) : 7.36kN

Speed(km/h) : 10.6km/h/ 7.5km/h

Voltage : 250 or 550V

Power (KW) : 6.5*2 or 12*1

Dimensions Length(mm) : 2700mm/ 2750mm

Width(mm) : 940, 1082 or 1220mm

Height(mm) : 1550

Wheelbase (mm) : 816mm/ 850 mm

Wheel diameter (mm) : Φ650mm/ Φ520 mm

Min Curve radius (m) : 5.7-6 m

Controller : Resistance or IGBT

Braking method : Mechanical or Hydraulic Brake
