25t Battery Locomotive For Subway Tunneling Match With Tbm Key - China
price: 30000.00 Dollar US$
china coal0001

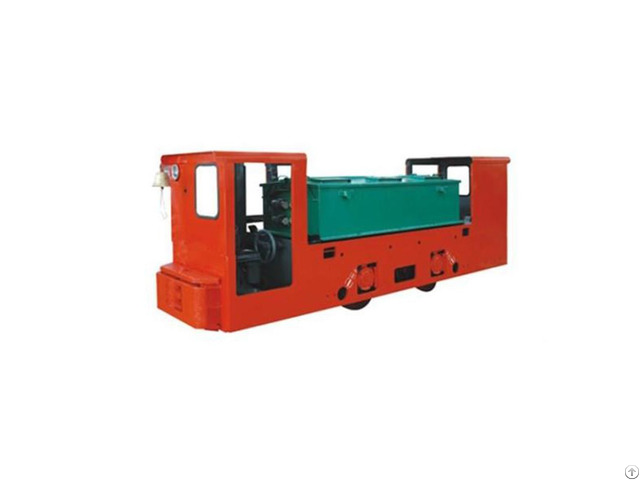

25T Battery Locomotive For Subway Tunneling Match With TBM
Keywords: locomotive, battery locomotive, underground battery locomotive for sale, underground mining battery locomotives, mining locomotive manufacturers, locomotive battery
Introduction of 25T Battery Locomotive For Subway Tunneling Match With TBM
52T Battery Locomotive For Subway Tunneling Match With TBM is DC-AC driving, narrow rail battery powered mining locomotive, suitable for transportation tracting on the narrow rail for the field of coal, metallurgic, mine, forest, railway, road tunnel construction and etc.
Features of 25T Battery Locomotive For Subway Tunneling Match With TBM
● Great tractive effort
●Heavy duty loading capacity
●Smoothly climbing and moving
●Safe braking control system
●Reliable and easy operation
● Simple maintenance
●25-30% energy saving compared to DC driving type
●Less emission, Eco-Friendly Specifications & Model Number
Specification CAY25/7GP CAY25/9GP
Adhesive/ Total Weight(t) 25 25
Track Gauge(mm) 762 900
Wheelbase(mm) 2000 2000
Wheel Diameter(mm) 680 680
Coupler Height Over Steel Rail(mm) 320/430 320/430
Min Curve Radius(m) 30 30
Battery Volt Rating(V) 288/540(620Ah) 288/540(620Ah)
Braking Method Mechanical, Electrical, Air Mechanical, Electrical, Air
Max Tractive Effort(KN) 68.7 68.7
Max Speed(km/h) 25 25
Rated Speed per hour(km/h) 8.8 8.8
Power of Traction Motor(KW) 2*65 2*65
Transmission Dual Level Gearing Dual Level Gearing
Controller AC Frequency Conversion AC Frequency Conversion
Over all Dimensions 6700*1550*2300 6700*1550*2300
Service& Application Mucking in Mining& Tunneling Mucking in Mining& Tunneling
Parameter of 25T Battery Locomotive For Subway Tunneling Match With TBM
Company Contact:
- Posted By: Shandong China Coal Group
- Phone: 865372350961
- Address: No.11 Kaiyuan Road, Jining , China
- Email:
- Website: https://www.chinacoalintl.com
Published date: July 31, 2018
- Business Description: Shandong China Coal Industrial&Mining Supplies Group Co., Ltd
(hereinafter referred to as china coal) is a group company .
which is a
collection of e commerce, machinery manufacturing, software, research
and development, modern logistics of large diversified industrial group.
