10t Cjy10 6 7 Gp Trolley Mine Locomotive - China
price: 30000.00 Dollar US$
china coal0001

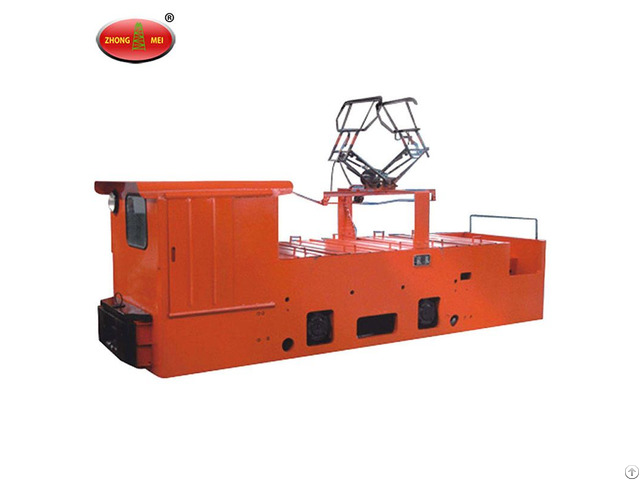

10t CJY10/6.7 - GP Trolley Mine Locomotive
Keywords: trolley mine locomotive, mining locomotive, electric trolley locomotive, railway locomotive
Introduction of 10t CJY10/6.7 - GP Trolley Mine Locomotive
10t CJY10/6.7.9GP Trolley Mine Locomotive, with the features of great tractive effort, heavy duty loading capacity, smoothly climbing and moving, safe braking control system, reliable and easy operation, simple maintenance, 25-30% energy saving compared to DC driving type, less emission, eco-friendly, etc, be widely used in large coal mines.
Parameter of 10t CJY10/6.7 - GP Trolley Mine Locomotive
Specifications CJY10/6GP CJY10/7GP
Adhesive Total Weight (t) 10 10
Track Gauge (mm) 600 762
Wheelbase (mm) 1100 1100
Wheel Diameter Over Tread 680 680
Coupler Height over Steel Rail(mm) 320/430 320/430
Min Curve radius (m) 7 7
Pantograph Operation Height (mm) 1800-2200 1800-2200
Braking Method Mechanical&Electrical Mechanical&Electrical
Max Tractive Effort (KN) 27.5 27.5
Max Speed (km/h) 20 20
Rated Speed (km/h) 10 10
Power of Traction (kw) 2*22(30) 2*22(30)
DC Input Power Voltage DC250/550 DC250/550
Transmission Single Level Spur Gearing Single Level Spur Gearing
Controller AC Frquency Conversion AC Frquency Conversion
Over all Dimensions (mm) 4460*1060*1590 4460*1340*1590
Service & Application Mucking in Mining&Tunneling Mucking in Mining&Tunneling
