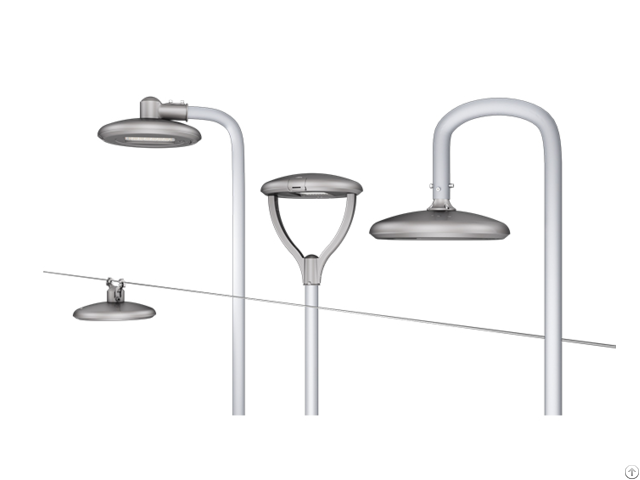

Tool Less Led Road Light - China

SPECIFICATIONS

Specifications

Model ZGSM-LD37LMX( X= A, B, C, D)

LED Brand LUMILEDS® LUXEON 3030 or 5050

Driver Brand Meanwell HLG series/ Inventronics

Norminal Wattage 37W

LED Chip Quantity 3030: 96pcs 5050: 48pcs

Input Voltage 100-240/277VAC

Power Efficiency >90%

Power Factor >0.95

Lamp Rated Luminous Efficiency 130-150 lm /w

Lamp Rated Lumen output 4810-5550 lm (Lumen tolerance +/- 5%)

Color Rendering Index 70(80 optional)

Color Temperature 3000K or 4000K or 5000K or 5700K

Photometric Type Type I Medium;Type II Medium;Type III Medium; TypeV, Short

Optimal Operating Temperature 25℃

Storage Temperatures -40°C~50°C

Working Environment Between-40°C~+50°C, 10%~90%RH

Total Harmonic Distortion < 10%

Lumen Maintenance > 100, 000 hours -L70, @25 ºC (77 ºF)

Wind Index Force 12

Body and Shell Materials Die-cast aluminum; Tempered Glass

Pole Fitter Diameter 60mm

Rating IP66 IK08

Protection Class I ( Class II optional)

SPD 10KV (20KV optional)

Certification CE, ENEC, CB ROHS, LM80, LM79, IP66 IK08, ISTMT

Dimming Options 1-10V or DALI or PWM or Timer

Control Options Photocell or Motion sensor or Smart control

Color Options Deep grey

Warranty 7 years PACKING DETAILS

Packing Details

Fixture Dimension A type: 480X480 X521mm ; D type: 480X480 X240mm

Fixture Weight 7.5 kg

Packing Dimension 495 X 495 X170 mm

Packing Weight 8.8 kg
