Outdoor Led Flood Light Economical 360w Ip66 - China

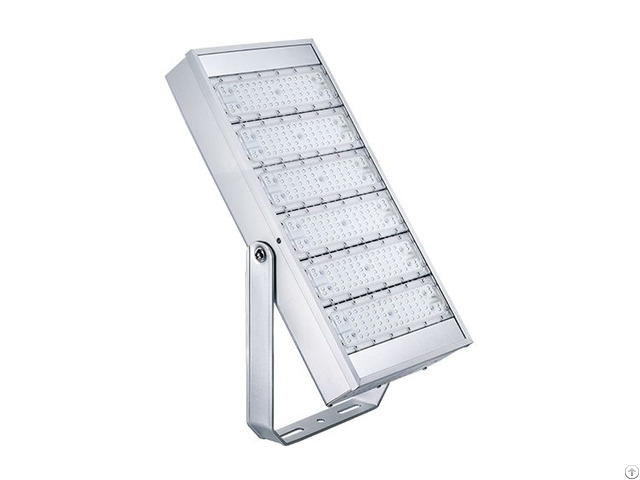

Outdoor LED Flood Light ECONOMICAL 360W IP66 Building LED Flood Light

Series H6B LED Flood Light

Model:

ZGSM-FGD360H6B

Application：

Warehouse | Workshop | Garage | Billboard | Area | Building

KEY FEATURES

1 - Wide power range: 40W~360W.

2 - Special circuit design, single LED’s damage won't affect others' normal work.

3 - Modular design for easy installation, replacement and maintenance.

4 - High Lumen output up to 165lm/ w with high quality LED chips.

5 - Various applications with different mounting Accessories.

6 - Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7 - Designed to last at least 100, 000 hours at L70.

8 - Multiple lighting distributions are available.

SPECIFICATIONS Model ZGSM-FGD360H6B

LED Brand Lumileds LUXEON 3030/5050

Driver Brand Meanwell HLG series

Norminal Wattage 360W

LED Module Quantity 6 modules

Input Voltage 100-240/277/347/480VAC


Power Efficiency >90%

Power Factor >0.95

Lamp Rated Luminous Efficiency 125-155 lm/w

Lamp Rated Lumen output 45000-55800 lm (Lumen tolerance +/- 5%)

Color Rendering Index 70 (80 is optional)

Color Temperature 3000K, 4000K, 5000K or 5700K

Photometric Type 60, 90, 110 degrees

Optimal Operating Temperature 25℃

Storage Temperatures -40°C~50°C

Working Environment Between-40°C~+50°C, 10%~90%RH

Total Harmonic Distortion < 10%

Lumen Maintenance > 100, 000 hours -L70, @25 ºC (77 ºF)

Body Stretching Aluminum

Cover PC lens

Rating IP66 IK10

Protection Class I ( Class II optional)

Certification CE, ROHS, LM80

Dimming Options 1-10V or DALI or PWM or Timer

Control Options Motion sensor or Smart control

Color Options Silver

Warranty 7 years

PACKING DETAILS

Fixture Dimension 531 x270 x373 mm

Fixture Weight 7.1kg /15.7lbs

Packing Dimension 650 x370 x200 mm

Packing Weight 8.1 kg /17.9 lbs
