Lpce 3 Ccd Spectroradiometer Integrating Sphere Compact System - China

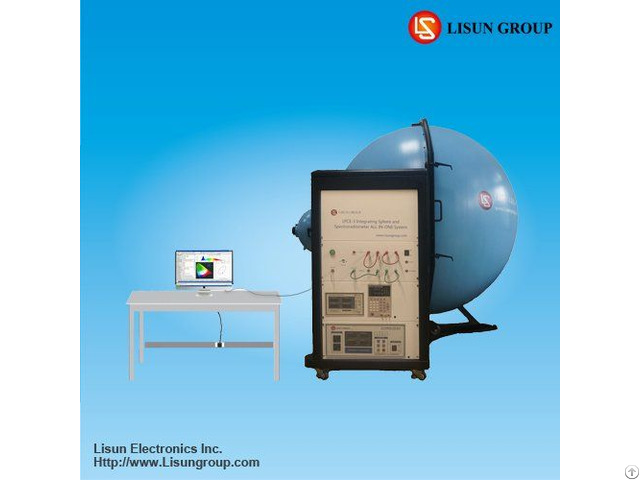

LPCE-3 is a CCD Spectroradiometer Integrating Sphere Compact System for LED Testing.

It is suitable for photometric and colorimetric measurement of luminaries such as LEDs, LED luminaires, Energy-saving lamps, Fluorescent lamps, HID lamps (high voltage sodium lamps and high voltage mercury lamps) and CCFL.

The measured data meets the requirements of CIE, EN and LM-79 clause 9.1 for the measurement of photometry and colorimetry.

System Configuration: CCD Spectroradiometer (LMS-7000), Optical Fiber (CFO-1.5M), Digital Power Meter (LS2008R), DC Power Source (DC-S Series), AC Power Source (LSP-500VAS), Integrating Sphere (IS-1.5MA-CASE and IS-0.3M), Standard Light Source (SLS-50W and SLS-10W) Measures:

• Colorimetric: Chromaticity coordinates, CCT, Color Ratio, Peak Wavelength, Half Bandwidth, Dominant Wavelength, Color Purity, CRI, Spectrum Test

• Photometric: Luminous Flux, Luminous Efficiency, Radiant Power

• Electrical: Voltage, Current, Power, Power Factor Specification:

• Spectral Range Wavelength: 380nm~800nm (200~1050nm can be option)

• Spectral Wavelength Accuracy: ±0.5nm Wavelength Reproducibility: ±0.5nm

• Sample Scanning Steps: ±0.1nm

• Accuracy of Chromaticity Coordinate (Δx, Δy): ±0.003

• Correlated Color Temperature CCT: 1, 500K~25, 000K.

CCT Accuracy: ±0.5%

• Color Rendering Index Range: 0~100.0, Accuracy: ± (0.3%rd±0.3)

• Photometric linear: ±0.5%

• Stray light: <0.015% (600nm) and <0.03% (435nm)

• Time of integration: 0.1mS~20S
