Led Road Light - China

LED road Light

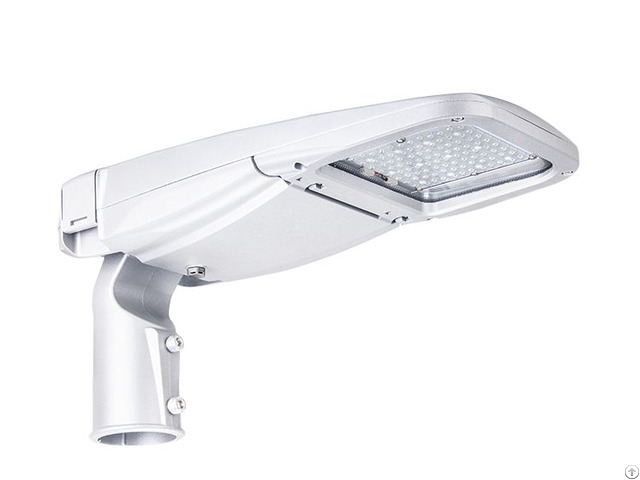

Series K LED Street Light

Model

ZGSM-LD55KS

Application

Street | Road | Highway | Parking lot | Bridge | Path

1 - Wide power range: 25W~200W.

2 - Special circuit design, single LED’s damage won't affect others' normal work.

3 - Tool-less open for easy installation, replacement and maintenance.

4 - Power-off protection makes the power automatically off when fixture is opened.

5 - Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6 - Level bubble makes it easy for the installer to adjust the position of the lamp.

7 - High Lumen output up to 150lm/ w with high quality LED chips.

8 - Pass the 1000 hour salt spray test.

9 - Vertical and horizontal installation both available, adjustable by ±15° in both directions.

10 - Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11 - Designed to last at least 100, 000 hours at L70.

12 - Multiple lighting distributions are available.

13 - ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

14 - 7 years limited warranty available.

SPECIFICATIONS

Specifications

Model ZGSM-LD55KS

LED Brand LUMILEDS® LUXEON 3030 or 5050

Driver Brand Meanwell HLG series/ Inventronics

Norminal Wattage 55W

LED Chip Quantity 3030: 96pcs 5050: 48pcs

Input Voltage 100-240/277VAC

Power Efficiency >90%

Power Factor >0.95

Lamp Rated Luminous Efficiency 125-145 lm /w

Lamp Rated Lumen output 6875-7975 lm (Lumen tolerance +/- 5%)

Color Rendering Index 70(80 optional)

Color Temperature 3000K or 4000K or 5000K or 5700K

Photometric Type Type I Medium;Type II Medium;Type III Medium

Optimal Operating Temperature 25℃

Storage Temperatures -40°C~50°C

Working Environment Between-40°C~+50°C, 10%~90%RH

Total Harmonic Distortion < 10%

Lumen Maintenance > 100, 000 hours -L70, @25 ºC (77 ºF)

Wind Index Force 12

Body and Shell Materials Die-cast aluminum;Tempered Glass
