Efficiency 300w Modular Design Led High Bay Light - China

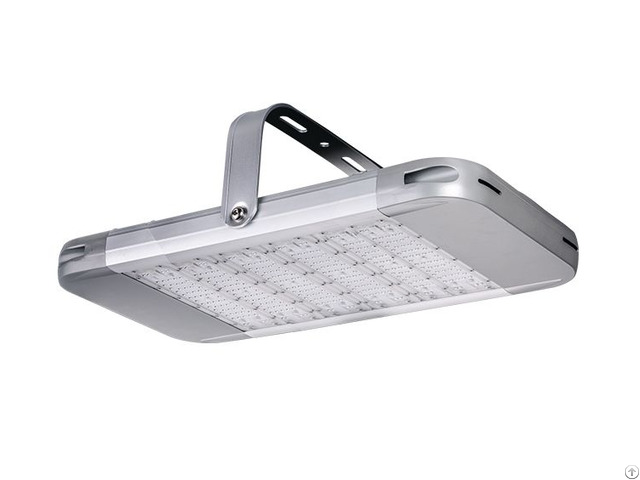

HIGH EFFICIENCY 300W Modular Design LED High Bay Light

Series H5 LED High Bay Light

Warehouse Suspended LED High Bay Light, LED High Bay Light Factory

Model：

ZGSM-GCD300H5

Application：

Warehouse | Workshop | Garage | Billboard | Area | Building

1 - Wide power range: 40W~360W.

2 - Special circuit design, single LED’s damage won't affect others' normal work.

3 - Modular design for easy installation, replacement and maintenance.

4 - High Lumen output up to 165lm/ w with high quality LED chips.

5 - Various applications with different mounting Accessories.

6 - Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7 - Designed to last at least 100, 000 hours at L70.

8 - Multiple lighting distributions are available.

SPECIFICATIONS

Model ZGSM-GCD300H5

LED Brand Lumileds LUXEON 3030/5050

Driver Brand Meanwell HLG series

Norminal Wattage 300W

LED Module Quantity 6 modules

Input Voltage 100-240/277/347/480VAC


Power Efficiency >90%

Power Factor >0.95

Lamp Rated Luminous Efficiency 130-160 lm/w

Lamp Rated Lumen output 39000-48000 lm (Lumen tolerance +/- 5%)

Color Rendering Index 70 (80 is optional)

Color Temperature 3000K, 4000K, 5000K or 5700K

Photometric Type 60, 90, 110 degrees

Optimal Operating Temperature 25℃

Storage Temperatures -40°C~50°C

Working Environment Between-40°C~+50°C, 10%~90%RH

Total Harmonic Distortion < 10%

Lumen Maintenance > 100, 000 hours -L70, @25 ºC (77 ºF)

Body Die-cast aluminum Housing

Cover PC lens

Rating IP66 IK10

Protection Class I ( Class II optional)

Certification CE, ROHS, LM80

Dimming Options 1-10V or DALI or PWM or Timer

Control Options Motion sensor or Smart control

Color Options Silver

Warranty 7 years

PACKING DETAILS

Fixture Dimension 658 x340 x156 mm

Fixture Weight 7.8 kg /17.2 lbs

Packing Dimension 705 x365 x160 mm

Packing Weight 9.0 kg /19.8 lbs
