Economical 180w Recessed Gas Station Led Canopy Light - China

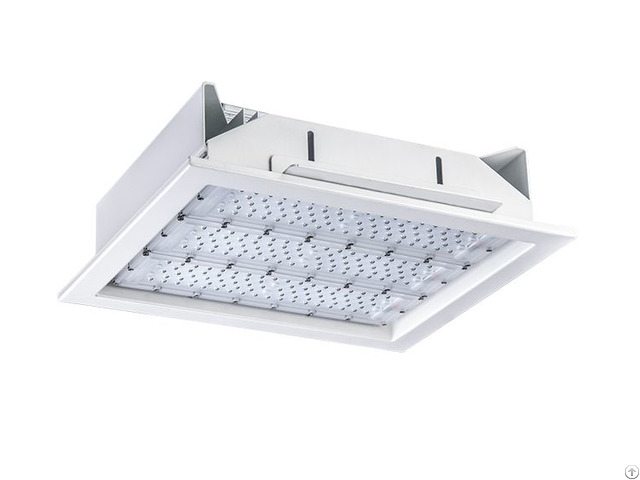

Economical 180w recessed gas station led canopy light

toll station led canopy light

series a6 recessed led canopy light

model:

zgsm-qd180a6

applications：

gas station | toll station | petrol station

key features

1 - wide power range: 40w~200w.

2 - special circuit design, single led’s damage won't affect others' normal work.

3 - modular design for easy installation, replacement and maintenance.

4 - high lumen output up to 140lm/ w with high quality led chips.

5 - multiple lighting control options are available, e.g. dali, 1-10v, motion sensor.

6 - designed to last at least 100, .

000 hours at l70.

7 - multiple lighting distributions are available.

8 - multiple lighting distributions are available.

specifications

model zgsm-qd180a6

led brand lumileds luxeon 3030

driver brand meanwell hlg series

norminal wattage 180w

led module quantity 3 modules

input voltage 100-240/277/347/480vac


power efficiency >90%

power factor >0.95

lamp rated luminous efficiency 130 lm/w

lamp rated lumen output 23400 lm (lumen tolerance +/- 5%)

color rendering index 70 (80 is optional)

color temperature 3000k, 4000k, 5000k or 5700k

photometric type 110 degrees

optimal operating temperature 25℃

storage temperatures -40°c~50°c

working environment between-40°c~+50°c, 10%~90%rh

total harmonic distortion < 10%

lumen maintenance > 100, 000 hours -l70, @25 ºc (77 ºf)

body stretching aluminum

cover pc lens

rating ip65 ik10

protection class i ( class ii optional)
