Cheap Price 320w Modular Design Led Path Light - China

Cheap price 320w modular design led path light

modular design led path light, street light fixtures

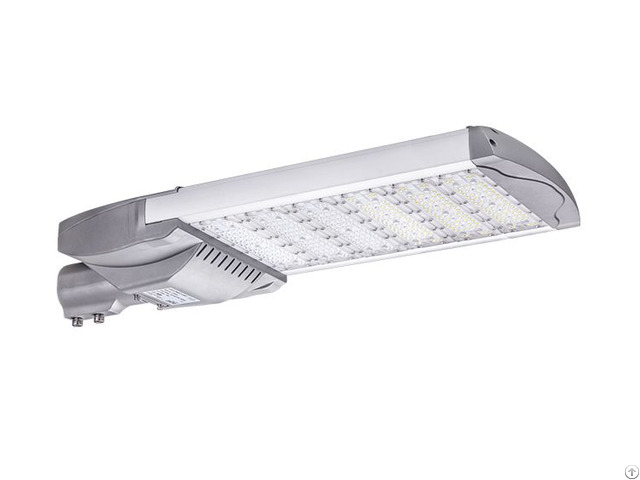

series h6 led street light

model：

zgsm-ld320h6

application：

street | road | highway | parking lot | bridge | path

1 - wide power range: 35w~320w.

2 - special circuit design, single led’s damage won't affect others' normal work.

3 - modular design and tool-less open for easy replacement and maintenance.

4 - power-off protection makes the power automatically off when fixture is opened (optional).

5 - level bubble makes it easy for the installer to adjust the position of the lamp.

6 - breather ensures air balance inside and outside of driver box of the lamp.

7 - high lumen output up to 165lm/ w with high quality led chips.

8 - 1000 hours salt spray test report.

9 - vertical and horizontal installation both available, adjustable by ±15°in both directions.

10 - multiple lighting control options are available, e.g. dali, 1-10v, photocell, motion sensor.

11 - designed to last at least 100, 000 hours at l70.

12 - multiple lighting distributions are available.

13 - ce, rohs, gs, cb, lm80, fcc, ip66, ik10

14 - 7 years warranty specifications

specifications

model zgsm-ld320h6

led brand lumileds 3030/5050

driver brand meanwell or inventronics

norminal wattage 320w

led module quantity 6 modules

input voltage 100-240/277vac

power efficiency >90%

power factor >0.95

lamp rated luminous efficiency 128-158 lm/w

lamp rated lumen output 40960-50560 lm (lumen tolerance +/- 5%)

color rendering index 70( 80 optional)

color temperature 3000k or 4000k or 5000k or 5700k

photometric type type i medium;type ii medium;type iii medium, typev, short

optimal operating temperature 25°

storage temperatures -40°c~50°c

working environment between-40°c~+50°c, 10%~90%rh

total harmonic distortion < 10%

lumen maintenance > 100000 hours -l70, @25 ºc (77 ºf)

wind index force 12

body die-cast aluminum housing

cover pc lens

pole fitter diameter 60mm ( 50mm optional)

rating ip66 ik10

protection class i ( class ii optional)

spd 10kv (20kv optional)

certification ce, rohs, lm80, lm79, fcc, ip66, ik10

dimming options 1-10v or dali or pwm or timer

control options photocell or motion sensor or smart control

color options silver or black

warranty 7 years packing details

packing details

fixture dimension 796 x316 x136 mm

fixture weight 9.9 kg /21.8 lbs

packing dimension 855x370 x200 mm

packing weight 11.6 kg /25.6 lbs
