Br 300 400watt Hv Co2 Power Supplies - China

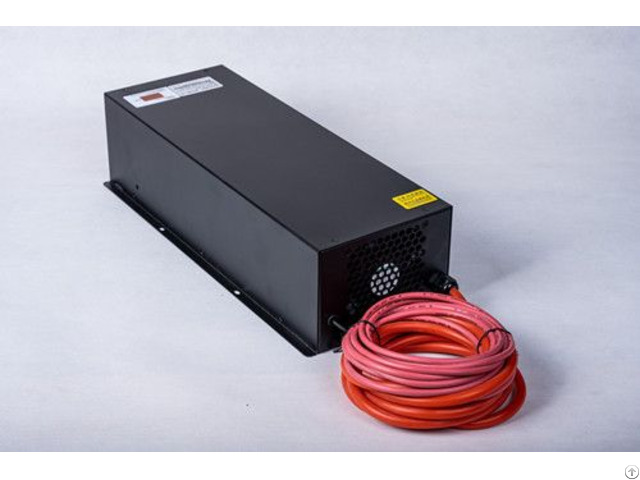

BR-200/300W CO2 laser power supply unit for folded CO2 laser tube

1 - Feature

1 - The folding CO2 tube power supplies have good protection feature: The folding CO2 tube power supplies have open circuit protection to make this folding CO2 tube power supplies work for a short time in the open state, so as to make it avoid the laser tube broken.

2 - This analog signal power supplies have easy control: The analog signal power supplies use high or low level for control.

The use of TTL-level control can realize start and stop quickly.

At the same time the analog signal power supplies have a protection switch, testing is made by external water and ventilation

3 - This analog signal power supplies use ordinary H/L/P/G/IN/5V interface to receive control signal.

It adopts aluminum upper cover and base, and galvanized plate casing.

on this analog signal power supplies.

4 - The 200W power supplies have good compatibility : This 200W power supplies can match with RECI, Yongli, SPT, EFR, Weiju and other brand 200W CO2 tube, besides this feature, the 200W power supplies also have strong adaptability and fast response, engraving or cutting benefits good effect.

5 - This 200W power supplies use 4PCS high quality flybacks/transformers which can make sure the 200W power supplies has stable voltage and current output to the load.

6 - This folding CO2 tube power supplies have stable working performance: Each folding CO2 tube power supplies have been much more testing procedures and under full load high temperature (52~55 degrees celsius) 24 hours of aging, which ensure the stability of each folding CO2 tube power supplies.

7 - The laser power control is simple, the 200W power supplies can use 0-5V analog signal or PWM signal for laser power control.

Specification:

Input Input voltage AC220V±10% (AC110V specified while order) AC frequency 47~440HZ Maximum input power 1300W Maximum input current 5.9A

Output Maximum output voltage 52KV Maximum output current 36mA

(depending on the laser tubes of different manufacturers)

Efficiency More than 90% (Full load)

Response speed Not more than 1ms

Control lnterace TTL multilevel switching control, effective level can be high and low selection (see control wining diagram)

Insulation lnput-output AC 1500V 1 minutes not more than 10mA lnput-shell AC 1500V 1 minutes not more than10mA Output-shell Connection

Open Circuit Protection Can be short circuit (requires a good grounding shell, while avoiding the positive electrode and the shell between the arc)

Environmental Requested Working temperature -10℃~50℃ Storage of temperature -20℃~75℃ Relative Humidity Maximum 85%RH (non-condensing) Altitude 100, 000 feet of work

200, 000 feet of storage, dose not work

Cooling methods Forced air cooling (fan cooling)

Dimensions (LxWxH) 385mmx140mmx100mm
