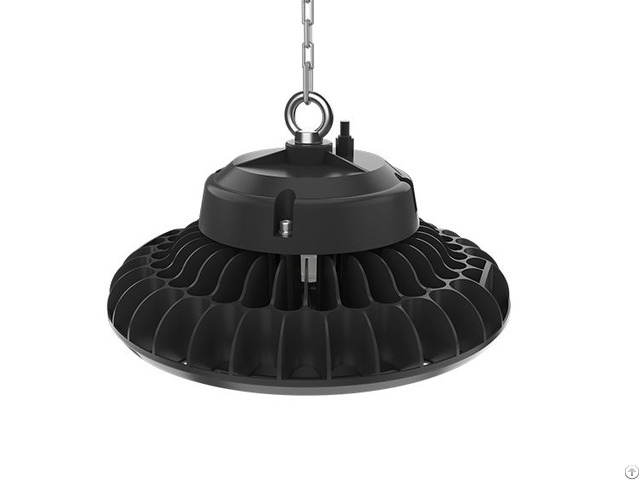

160w Ufo Type Led Industrial Lighting - China

160w ufo type led industrial lighting

led high bay light

workshop suspended led high bay light

series ufo led high bay light

model：

zgsm-ufo160m

application：

warehouse | workshop | garage

1 - wide power range: 100w~200w.

2 - special circuit design, single led’s damage won't affect others' normal work.

3 - high lumen output up to 155lm/ w with high quality led chips.

4 - variety applications with different mounting accessories.

5 - multiple lighting control options are available, e.g. dali, 1-10v, motion sensor.

6 - designed to last at least 100, 000 hours at l70.

7 - multiple lighting distributions are available.

specifications

model zgsm-ufo160m

led brand lumileds luxeon 3030/5050

driver brand meanwell hbg series

norminal wattage 160w

led quantity 3030: 240pcs 5050: 122pcs

input voltage 100-240/277vac

power efficiency >90%

power factor >0.95

lamp rated luminous efficiency 140-155 lm/w

lamp rated lumen output 22400-24800 lm (lumen tolerance +/- 5%)

color rendering index 70 (80 is optional)

color temperature 3000k, 4000k, 5000k or 5700k

photometric type 60, 110 degrees

optimal operating temperature 25℃

storage temperatures -40°c~50°c

working environment between-40°c~+50°c, 10%~90%rh

total harmonic distortion < 10%

lumen maintenance > 100, 000 hours -l70, @25 ºc (77 ºf)

body die-cast aluminum housing

cover 110°-tempered glass ；60°-pc lens

rating ip65 ik08

protection class i

certification ce, rohs, lm80

dimming options 1-10v or dali or pwm or timer

control options motion sensor or smart control

color options black

warranty 5 years

packing details

fixture dimension 350x350x193 mm

fixture weight 5.2 kg

packing dimension 365x365x210 mm

packing weight 6.0 kg
