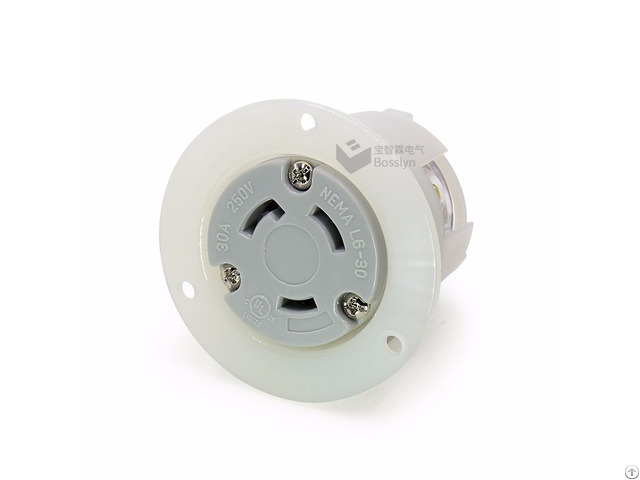

Nemal6 30 American Female Locking Flanged Outlet Power Receptacle 30a 250v Bl630fo - China

Modle : BL630FO Color ： White Brand name : Bosslyn Certification ： ULE500807 ROHS Grounding : Standard Grounding Housing Material : Nylon Blade Material ： Brass Rated working current ： 30A Rated working voltage ： 250V​​​​​​​ America Dupont Nylon construction, resists damage from severe impact, abrasion and chemicals NEMA Configuration : NEMA L6-30 Power Inlet, 2-Pole, 3-Wire, Grounding Certified by c( UL)us and UL file number is ULE500807 (Standard: UL 498) Electric Ratings: 250 Volts, 30 Ampere Environmental Specifications Flammability: Meets UL94 requirements; V2 rated Temperature Rating: -40°C to 60°C (-40°F to 140°F) except flat cablE Temperature Rise: Max.

30ºC (86°F) after 50 cycles of overload at 150% of rated current (DC) Electrical Specifications Dielectric Voltage: Twice the device rating + 1000V per UL498 Mechanical Specifications Terminal Accommodation: #16 - #8 AWG Mounting holes interchangeable with competitive units Back wire terminal clamps for easy, secure wiring Individual wiring compartments with tapered channel for easy insertion of wires
