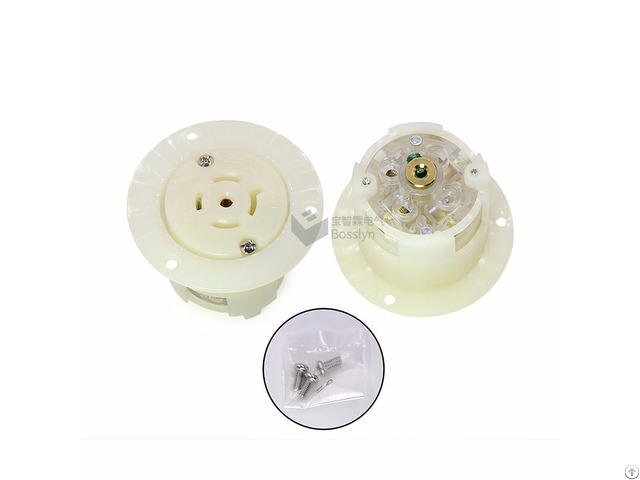

Nemal21 20 American Female Locking Flanged Outlet Power Receptacle 20a 120 208v Bl2120fo - China
price: 10.00 Dollar US$
AC Horsepower Ratings
Horsepower Rating: 2 HP Electrical Specifications
Grounding: Grounding
Amperage: 20Amp
Voltage: 120/208Volt
NEMA: NEMA BL2120FO
Pole: 4
Wire: 5
Dielectric Voltage: Withstands 2000V per UL498
Current Interrupting: Certified for current interrupting at full rated current
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current Environmental Specifications
Flammability: Rated V-2 per UL94
Operating Temperature: -40C to 60C Material Specifications
Body Material: Super Tough Nylon
Back Cover: Thermoplastic
Wire Module: Nylon
Cord-Clamp: Nylon
Clamp Insert: Nylon
Blades/Contacts: Solid Brass
Terminal Screws: Brass
Assembly Screws: Steel, Zinc Plated
Color: Black-White Mechanical Specifications
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom: 18-10 AWG
Product ID: Ratings are permanently marked on device
Cord Range: .
385 - .
780 Wire Gauge: 16-10 AWG
Standards and Certifications: UL498
Company Contact:
- Posted By: Guangzhou Bosslyn Electric Co.,Ltd
- Phone: +8618922793822
- Address: 3F Building B No. 17 Hanxi Rd,Hanxi ,Zhongcun Town,Panyu District, GUAGNZHOU , GUANGDONG , China
- Email:
- Website: https://www.bosslyn.com
Published date: July 23, 2019
- Business Description: Guangzhou Bosslyn Electric CO., Ltd started business from 2008 and was founded in 2014 - We are specialized in manufacturing and supplying more than 100 style products, including travel plugs, sockets, global travel plugs, American GFCI Outlet, USB Outlet NEMA Plug connector,Universal Travel Adapter,Travel Plug Adaptor,wall charger,Power plug&Socket,Metal box cover plate and so on, with complete and scientific quality management system.
The products have already passed CE, UL, CCC, VDE, ROHS, BSI, SAA and other product certification, and through the ISO 9001 production management system certification, through the third-party manufacturer of INTERTEK factory inspection certification.
Over the years, we are adhering to the production and management concept of "honesty first, quality first".
