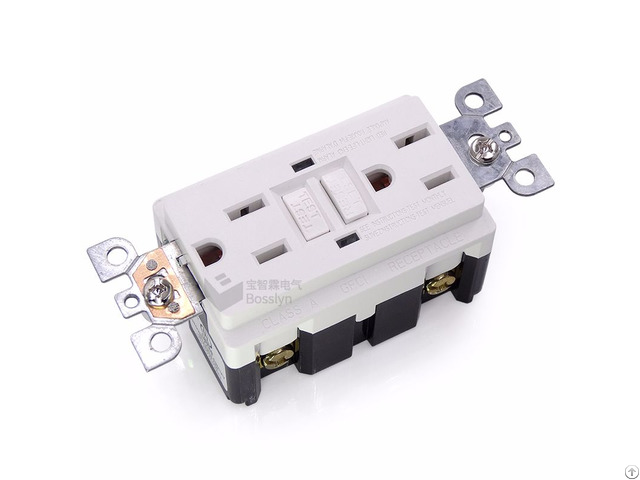

Gfci 15a American Sockets Self Text - China

Modle : BGFCI-15 Color ：white Brand name : Bosslyn Certification ： UL&CUL E500632 Electrical Specifications

Grounding: Grounding

Amperage: 15 Amp

Voltage: 125 Volt

NEMA: 5-15

Pole: 2

Wire: 3

Dielectric Voltage: Withstands 2000V per UL498

Current Interrupting: Certified for current interrupting at full rated current

Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current Environmental Specifications

Flammability: Rated V-2 per UL94

Operating Temperature: -40C to 60C Material Specifications

Body Material: Super Tough Nylon

Back Cover: Thermoplastic

Wire Module: Nylon

Cord-Clamp: Nylon

Clamp Insert: Nylon

Blades/Contacts: Solid Brass

Terminal Screws: Brass

Assembly Screws: Steel, Zinc Plated

Color: Black-White Mechanical Specifications

Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Terminal Accom: 18-10 AWG

Product ID: Ratings are permanently marked on device

Cord Range: .

385 - .

780 Wire Gauge: 16-10 AWG

Standards and Certifications: UL498 UL file Number: E500632
