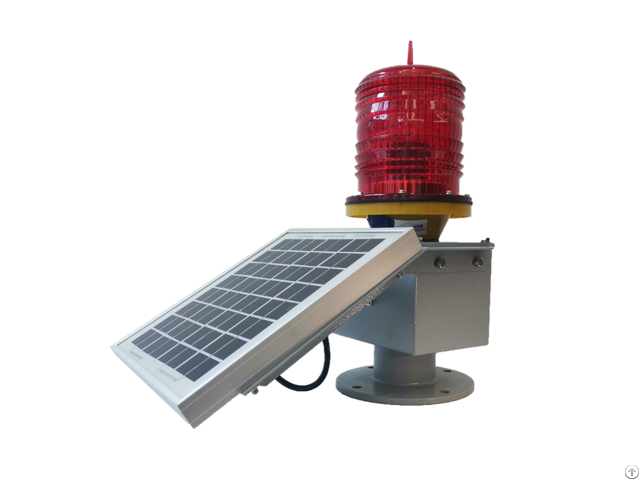

Aviation Obstruction Light For Electric Transmission Line - China

Parameter Low/Medium Intensity(DX-JSS100-HKD/M L) Medium/High Intensity(DX-JSS100-HKD/H L)

Working Voltage DC11-18V DC11-18V

Quiescent Current ≤1mA ≤1mA

Flash Frequency 10-60 times(Adjustable)with soft boot flash mode 10-60 times(Adjustable)with soft boot flash mode

Color Red, White, Green, Yellow, Blue Red, White, Green, Yellow, Blue

Light-operated Sensitivity 50~300LX(Adjustable) 50~300LX(Adjustable)

Work ing Environment ~400°C~600°C ~400°C~600°C

Effective Light Intensity 1600cd(about 6.4KM) 1600cd(about 6.4KM)

Battery Capacity DC12V 12Ah DC12V 12Ah

Illuminant Lifespan 80-100K Hours 80-100K Hours

Ingress Protection IP65 IP66

External Dimension 360MMx280MMx450MM 470MMx365MMx600MM

Install ation Size Chassis180mm;Pitch Circle150MM;4-11 Holes Chassis200mm;Pitch Circle170MM;4-14Holes

Wei ght 8.5KGS 8.5KGS 1 - Have Low Intensity/Medium/High Intensity aviation obstruction light

2 - Illuminant uses long lifespan, fast irradiation and high-intensity LED light.

3 - Daylighting control will be adjusted automatically based on different weather.

4 - Glint cycle could be setted if necessary.

5 - Could bear impact, thunder, insolation, blizzard, typhoon, hailstone etc severe weather.

6 - Long battery life, could work at -40°C low temperature condition and rainny days continuously for over 15 days.
