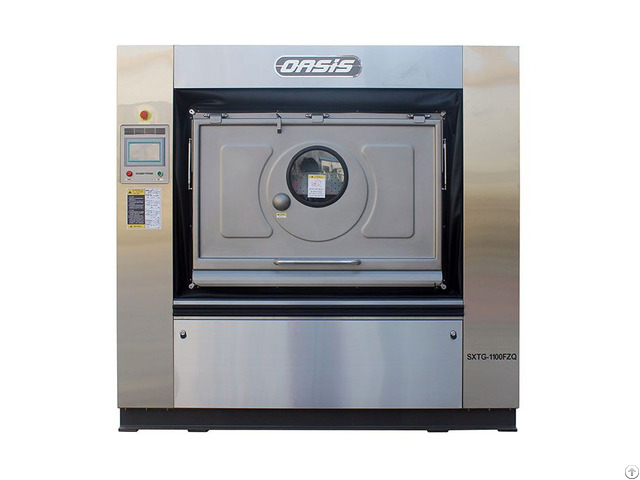

Oasis Barrier Washer 110kg - China

Medical Barrier Washer Extractor Hospitals; Nursing homes; Cleaning companies; Nuclear Plants; Fire Brigades; Hotels High quality and robust construction Low water, steam and electrical consumption Higher protection against the spreading of infection Barrier Washer OASIS introduction Hygienic barrier concept The linen is loaded into the drum through a large door opening on one side of the laundry, the soiled side.

At the end of washing cycle, the clean linen is unloaded from the washer-extractor through a second and opposite door in another room, the clean side of the laundry area.

A barrier separates the clean and dirty side of the laundry.

In this case, there is no possibilities that bacteria, dust or other dirt particles come into contact with the clean linen.

As we mentioned before, the strongest risk is the recontamination of clean linen by contact of air, surfaces and workers.

Using barrier washer-extractor (positioning through a physical wall) offers the best protection for employees, patients and the best prevention for the spreading of micro-organisms.

Barrier Washer OASIS Standard Features Freestanding, high spin Drum with 1 pocket Stainless steel (AISI 304) cabinet, drum and tube Parts in contact with water made of SS304 stainless steel Large door for easy loading and unloading.

Large sight glass for visible working process.

Oversized frame, bearings and drum Large air operated drain valve Auto door positioning system Easy access to all mechanical parts Frequency controlled motor Brake resistor, instance braking Powerful microprocessor - Freely programmable with up to 50 programs Standard cold and hot water inlet valves and one drain valve Direct steam injection heating Air bags suspension system ensure quiet and smooth extraction (available for SXTG-600 and SXTG-1100) Soap Dispenser with 5 compartments Signal up to 5 dose pumps Safety devices - emergency stop, overload protector, air lock doors, air spring door support, safety door interlock system, additional door lock sensor, unbalance switch, heat resistance door glass, double vibration control, buzzer, etc.

Options SS316L stainless steel for high specification clean room application Multi-language Wash record printer Built-in weighing system Electrical heating or indirect steam coil heating Third water inlet valve and second drain valve for water reuse Water sampling valve Liquid soap pump for liquid detergents Special voltage system

TECHNICAL SPECIFICATIONS

Model Unit SXTG-250FZQ SXTG-350FZQ SXTG-600FZQ SXTG-1100FZQ

CAPACITY

Rated capacity kg 25 35 60 110

BASKET

NO.

of compartment pc 1 1 1 1

Diameter mm 774 774 1065 1065

Depth mm 510 726 760 1268

Volume Lt.

240 342 677 1130

DOOR

Door opening width mm 604 820 791 1299

ROTATE SPEED

Wash speed rpm 45 45 30 30

Balance speed rpm 90 85 70 70

Medium extract speed rpm 400 400 400 400

High extract speed rpm 750 700 600 600

Max.

G force G 300 300 300 300

POWER SUPPLY

Voltage V 220 380 380 380

Frequency Hz 50 50 50 50

DRIVE MOTOR

Power kw 2.2 4 7.5 11

CONNECTION

Cold water inch 1 1 1.5 1.5

Hot water inch 1 1 1.5 1.5

Chemical supply inch 3/4 3/4 3/4 3/4

Steam inch 1/2 1/2 1 1

Compressed air mm 8 8 8 8

Drainage mm 75 75 125 125

PRESSURE

Water Mpa 0.15-0.25 0.15-0.25 0.15-0.25 0.15-0.25

Steam Mpa 0.45-0.55 0.45-0.55 0.45-0.55 0.45-0.55

Air Mpa 0.8 0.8 0.8 0.8

DIMENSION

Width mm 1074 1290 1592 2100

Depth mm 1100 1100 1448 1448

Height mm 1500 1500 2035 2035

WEIGHT

Net weight kg 670 820 2390 2860
