Automatic Soap Pe Film Wrapping Machine - China

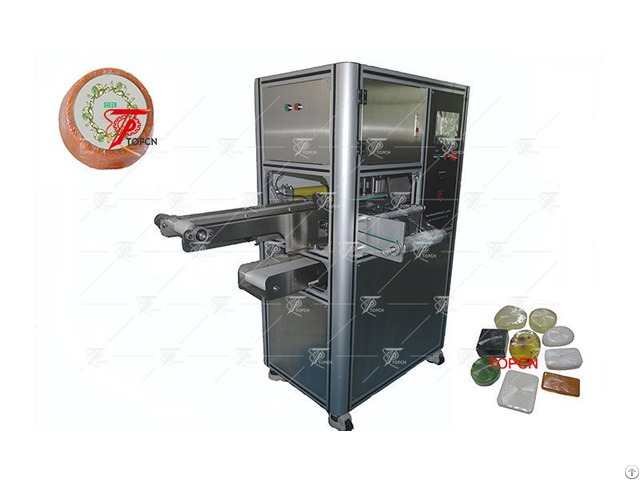

Soap PE Stretch Film Wrapping Machine

1 - This soap wrapping machine adopt cylinder drive system, and work steady, can get very good packaging effect.

2 - Packing film auto stretch make shape.

Auto recycle the left film.

3 - Auto close the end and shrink it.

automatic soap wrapping machine

4 - Can pack various shape soap, no need change any mould.

(except the specific shape )

5 - With simple convey system work reliable, more convenient to maintain.

Model No TPM-03P

Shape & dimension scope of the soap One set mold can meet different shapes & dimensions

Dimension scope of the soap Min.

dia.

: 35mm Max.

dia.

: 80mm Min.

Thickness : 15mm Max.

Thickness : 40mm Remarks : The soap dimension not within the standard specifications need actual samples for testing

Characteristics 1 - Automatic self-checking function: It will automatically self-checking the problems and display on the screen while operating.

2 - Working mode : Continuous 3 - Operating mode : Inching or Single linkage or Automatic 4 - Output count: 6 digit 5 - Touch panel

Weight of scope of the soap 10g-120g

Packing speed 10-20pcs per minute

Packing film PE Stretch film

Film specification Width 24cm Thickness 0.018-0.025mnn

Film stretch aspect ratio 1: 06

Inner diameter of the tube Φ75mm

Outer diameter of the film roll Less than Φ260mm

Air pressure 0.5-0.7Mpa

Air consumption 600cc.

/min

Power 220v 50/60Hz(we offer customer- built service)

Max.

Power 120w

Noise 55dB

Machine overall dimension L1280*W960*H1580mm

Machine net weight 120kg

Machine overall packing dimension L1320*W1020*H1620mm
