Water Jet Cutting Machine For Stone Glass Metal - China

EAAK Water jet cutting machine application:

Cutting materials are not limited (stainless steel, steel, copper, aluminum and other metals, glass steel, stone, glass, ceramics, plastics, composite materials.

), waterjet cutting is currently the most applicable cutting process;

Metal cutting:

1 Decoration of stainless steel, aluminum.

iron, brass and other metal cutting process.

2 Manufacture of machinery and equipment control cabinets such as food machinery, medical machinery, CNC machinery.

3 The metal parts cutting such as stainlesssteel flange, semi-finished, steel construction, non-ferrous metal and so on.

Glass cutting:

1 Gas stove surfaces, range hood, disinfecting cabinet, TV, bathroom products.

2 Construction and decoration glass, automotive glass.

Ceramic and stone cutting:

1 Ceramic cutting for decoration and construction.

2 Marble mosaic, granite mosaicmstone plate cutting.

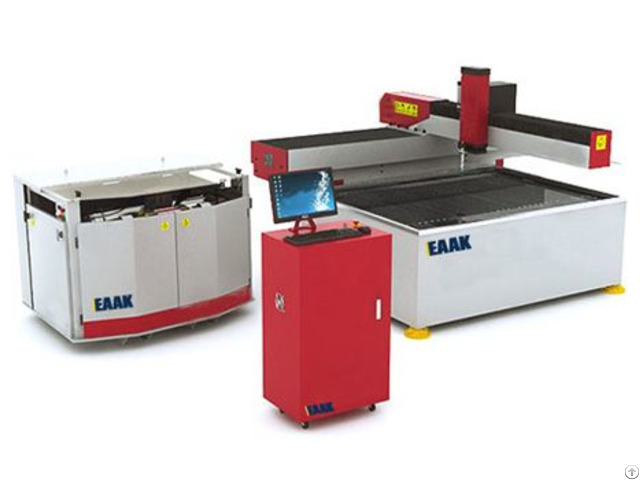

Specification of EAAK CNC water jet cutting machine: (as follows)

Model EK1530

X Y axis Working size 1500mm*3000mm

Z working height 150mm

Cutting Pressure 380Mpa 30kw UHP pump

Control accuracy 0.01mm

Cutting accuracy 0.1-0.2mm

Repositioning Accuracy 0.05mm

Max cutting thickness 300mm(depends on materials)

Max.

moving speed 6000mm/min

Power supply 380V 50Hz

Environmental temperature -10-50°C

Max flow rate 3.7L/min

Max oil discharge 206L/min

Max delivery capacity of oil pump 106L/min

Control system Ncstudio (Shanghai) software IPC controller

CAD/CAM software AutoCAD, ArtCAM

Drive motor Japan Yaskawa servo drive motor

Company Contact:

• Posted By: Shandong EAAK Machinery Co., Ltd

• Phone: +8653182020399

• Address: Jinan,China , Jinan , Shandong , China

• Email:

• Website: http://www.eaakcnc.com

• Business Description: Shandong EAAK Machienry Co., Ltd was established on October 19, 2001 - The company is located in the scenic Spring-city Jinan, the company registered capital of 5 million yuan.

  We mainly manufacture ultra-high pressure CNC water jet cutting machine,water jet cutter,cnc router,laser machine and accessories,CNC ultra-high pressure cleaning equipment and accessories production are as one of the high-tech innovation and enterprise.

  Currently we has a product line of 80 models of the three major product series.

  Set up more than 35 branches or offices in major cities in the country, our products across the country and exported to the United States, Germany, Australia, Vietnam, Italy, Venezuela, South Africa and other countries.

  Shandong EAAK Machienry Co., Ltd has won the honors of "China Famous Brand", "China's high-quality brand-name products.

  Enterprise products obtained ISO9001 quality system certification in 2012.

  Shandong EAAK Machienry Co., Ltd, engineering and technical personnel 25 people, the results of research and development has been more than 10 invention or utility model patents, and is widely used in the production of the product among.

  Shandong EAAK Machienry Co., Ltd all staff are adhering to the "innovation, development, integrity and service" theme, establish the "honesty, innovation first, customer service, and common development" business philosophy, based on domestic, global markets around the core competencies industries continue to expand market space, innovation, pragmatic and enterprising, strode scale gathering rich new industry Group of the holy industry beliefs and social responsibility forward.
