Large Size Laser Cutting Machine Eaak - China

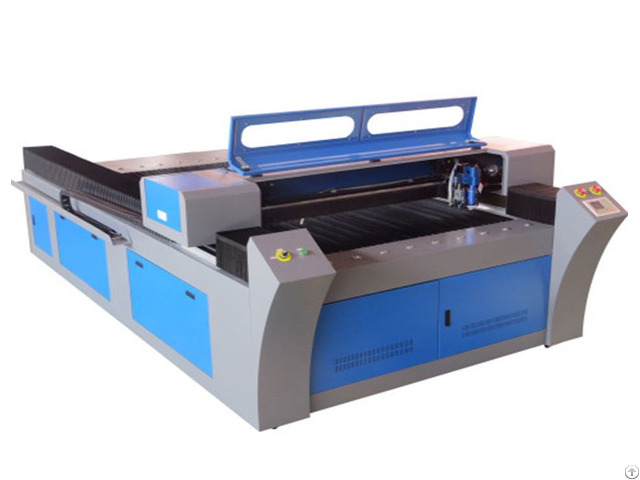

The EK2513 laser mixing and cutting machine is a large-format, ultra-high cost-effective mixing and cutting machine, which can comprehensively meet the processing needs of non-metals such as acrylic and wood, as well as metal materials such as stainless steel, carbon steel, galvanized sheet and electrolytic board, especially widely used.

In the advertising, crystal, plastic and other non-metallic materials thick material cutting, the moving part uses high-precision guide rails and high-speed stepping motor; embedded computer control, DSP digital high-speed processing technology, offline operation, user-friendly operation interface.

The laser power and the cutting speed change are freely controlled, and the cutting precision is high.

It is the best choice for laser cutting industry and laser processing center for metal and non-metal materials.

Application areas:

Display product company: plexiglass products, stainless steel cutting, various counters;

Home and decoration company: solid wood, bamboo products, composite flooring;

Building materials: 20mm various building composite materials;

Packaging industry: various packaging materials, cardboard, foam board, sponge, PVC and other packaging materials;

Gifts, to template cutting, shelf making, high and low voltage distribution cabinets and other sheet metal factories.

Parameters of laser engraving machine EK2513:

1 Machine model EK2513 laser engraving machine

2 Laser power 60W/80W/100W/130W/150W


3 Laser Type CO2 closed glass tube taser

4 Power supply voltage AC220±10% 50HZ/AC110±10% 60HZ

5 Largest size 2500mm * 1300mm

7 Engraving speed 25-25000mm/min

8 Cutting speed 50-10000mm/min

9 Dimensions size 3450mm×2200mm×1200mm


10 Wooden packing size 3570mm×2320mm×1410mm


11 Weight 1200KGS

12 Total power <2250W

13 Platform Honeycomb / Aluminum Knife (up and down optional)

14 Positioning accuracy <0.01mm

15 Number of hanging cables 60 lines/line

16 Minimum forming characters Letters: 1 * 1mm

17 Working temperature 0°C-45°C

18 Working environment humidity 5%～95%

19 Motherboard system nvironment Windows XP/ Windows 7/ Windows 8

20 Cooling method Water cooling and protection system

21 Support for graphic formats All CorelDraw/AUTOCAD can be other file formats
