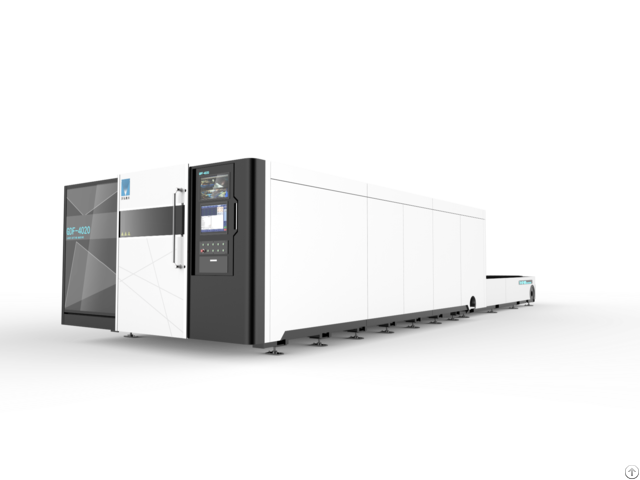

Fiber Laser Metal Sheet Cutter With Exchange Table From 3000 15000w - China

Features

1 - High-end configuration: core components are equipped with first-line brands such as Germany and France; Beckoff 3rd generation CNC system is easy to operate, and can provide real-time feedback on processing status to ensure orderly processing;

2 - High reliability: Tianhong Laser newly builds CNC system platform, EthCAT bus control, stable and reliable; imported laser, longer service life, more stable and reliable;

3 - Easy to operate: flexible operation of the sports system, user-friendly design, more practical user experience;

4 - High degree of intelligence: maximum configuration of fully automatic components, centralized process database, reducing manual intervention on the machine, maximizing the safety of personnel.

Specification

Laser power：3000W-15000W

Z axis stroke：300mm

Max.

running speed of X/Y axis：GDF4020(110m/min)G DF6025(100m/min)

Max.

linkage speed of X/Y axis：GDF4020(144m/min)G DF6025(120m/min)

Max.

acceleration of X/Y single axis：GDF4020(1.5G)GDF60 25(1.0G)

Positioning accuracy：±0.05mm/m

Repositioning accuracy：±0.03mm Specifications

Processing format：GDF4020(4000*200 0mm)GDF6025(6000*2500mm)

Exchange station workbench maximum load：GDF4020(1.6T)GDF60 25(3T)

Total Weight：GDF4020(12T)GDF6 025(17T)

Machine dimensions：GDF4020(1100 0*3450*2500mm)GDF6025(150 00*3950*2500mm)

Company Contact:

• Posted By: Suzhou Tianhong Laser Co., ltd

• Phone: +86-18302039416

• Address: No.66 Tonghe Road, Weiting, Industrial park, Suzhou , Jiangsu , China

• Email:

• Website: https://www.cnthlaser.com

• Business Description: Company infomation:

  Suzhou Tianhong Laser Co,.

  Ltd ,founded on january 9,2001, is a public high-tech enterprise specialized in developing optical and electrical integrated equipment, and rated as 'National High-power and Picosecond Laser Industrialization Application Demonstration Unit in the 12th Five-Year Plan 863 project'.

  The main products include seven system: 1 - medium and small power laser processing system, 2 - laser welding system, 3 - CNC laser cutting system, 4 - micro-processing system, 5 - automatic system, 6 - laser 3D remanufacturing system, 7 - CO2 laser tube.

  The company is a laser equipment manufacturer with most complete product coverage and longest history in Eastern China.
