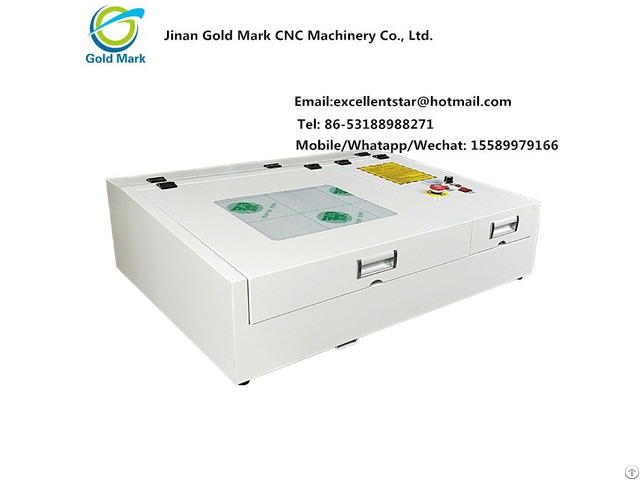

Co2 Laser Engraver Machine Ts4040 For Hot Sale - China
price: 600.00 Dollar US$
**PRODUCT PARAMETER** Model TS4040 laser engraving and cutting machine
Colour White and Black
Working Table Size 400mm *400mm
Laser Tube Sealed CO2 glass Tube
Working Table Honeycomb
Laser Power 50W Cutting Speed 0-60mm/s
Engraving Speed 0-400mm/s
Resolution ±0.05mm/1000DPI
X Axis Linear Guides
Y Axis Double Slide Rails
Minimum Letter English 1×1mm (Chinese Characters 2*2mm)
Support Fils BMP, HPGL, PLT, DST and AI
Interface USB2.0
Software CorelDraw (Direct Output)
Computer system Windows XP/win7/ win8/win10
Motor Stepper Motor
Power Voltage AC 110 or 220V±10%, 50-60Hz
Power cable European Type/China Type/America Type/UK Type
Working Environment 0-45℃(temperature) 5-95%(humidity)
Power consumption <350W (Total)
Position system Red-light pointer
Cooling way Water cooling and protection system
Machine Size 102*87*37cm
Gross Weight 55KG
Package Standard plywood case for export
Warranty All life free tech support, one year warranty, except consumables
Free accessories Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable
Company Contact:
- Posted By: excellentstar
- Phone: 86-53188988271
- Address: 13788,Century Avenue, Jinan , China
- Email:
Published date: August 2, 2018
- Business Description: We are professional manufacture of laser engraver, fiber laser marking machine, laser cutting machine and spare parts in China.
