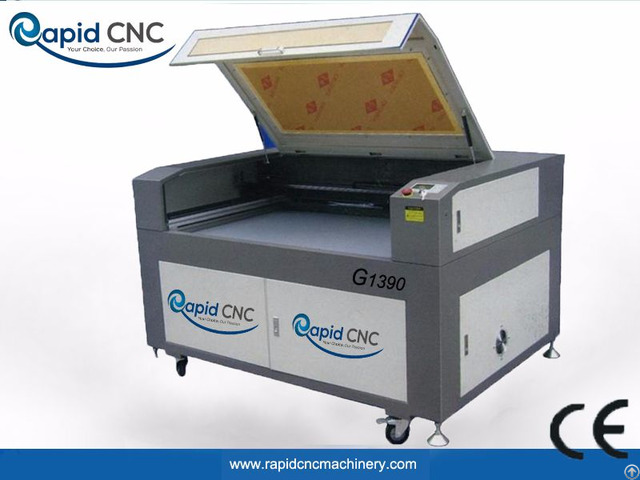

CNC leather engraving and cutting machine G1390

Features:

Whole steel welded structure with power coating surface, working stable.

Taiwan hiwin square orbits, American belt power transmission, fast speed and smooth.

Side material cross through design, the working size is not limited .

Chinese famous brand reci laser tube, long working life .

Automatic up and down table, auto focus function, rotary clamp all available USB data transfer, LED screen, DSP off line control, convient for work .

Applications:

Leather materials are widely used for bag making, shoes making, wallet making, gift making, all of these all will use our laser machines.

It not only can engrave on it, holes cutting, but also can cut leather for design cutting etc.

For leather engraving, it’s better to choose 80w, for oversea buyers it’s better to choose 80w, because 80w laser tube and tubes bigger than 80w life time is long, it can save your cost for transportation, if possible better to buy spare use tube together with machine, this way is safe and also save a lot of cost of delivery charge.

For leather cutting, it’s better to choose at least 80w, exact power depend on your acrylic thickness, usually cutting thickness is from 0-30mm.

1 - applicable materials: acrylic, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials

2 - Applicable industries: advertisement, gift, shoes making, bags making, toys, computers, garments, model cutting, building, packaging, paper industry.

Technical parameter:

Model G1390

X Y working size:

1300X900mm

Z strokes:

0-20mm

Laser tube output:

60w/80w/130w/150w

Laser type: Co2

Control system:

Reader

Table type: Honeycomb/Blade Mini character:

English 1mm×1mm, Chinese 2mm×2mm, Supported file formats

JPG, BMP TIF DXF HPGL Resolution:

2500 dpi.

Laser output:

0-100%

Driver:

High speed stepper Transmission: Taiwan hiwin square orbits

Working temperature:

5°C-35°C

Cool mode for laser tube: Water cooling

Working humidity:

5%-95%(without condensed water)

Machine colour: Optional Function: Engraving and Cutting

Engraving speed: 0-60000m/min

Cutting speed: 0-30000m/min(according to material and thickness)

Voltage: 110V/220V/50HZ

Machine size: 1850x1300x1350mm

Package: Veneer packing

Gross weight

450KG
