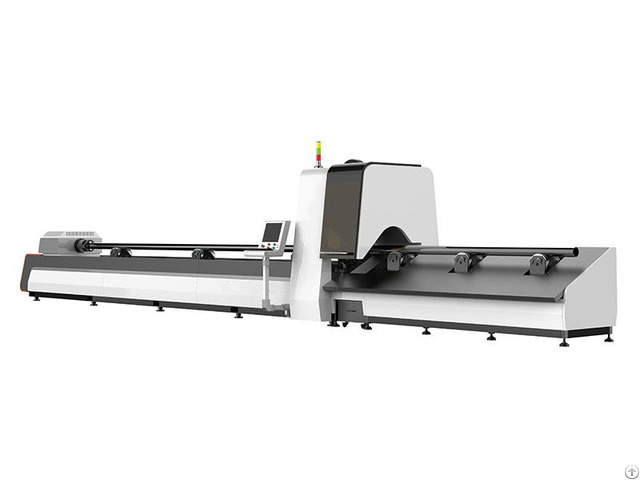

CNC Fiber Laser Cutting Machine For Steel Tubes With Factory Price

Main Features:

1).

Strong machine structure welded by thick steel plates, fine machining by world famous machining centers to guarantee high running precision;

2).

Automatic centering pneumatic chuck, the accuracy and excellent performance can be well guaranteed.

3).

Unique design of material feeding from back of machine, time saving and more efficient

4).

Mechanical type automatic centering for front Chuck and Pneumatic Back Chuck, high-precision positioning.

5).

Can be used for different kinds of profiles, including round pipes, square tubes, rectangular tubes, oval tubes, waist round metal, etc.

6).

German IPG brand/China famous Raycus Laser sources, high and stable function, lifespan is over 100, 000 hours

7).

Minimum Tailing length 180mm, reduce tube waste.

8).

Equipped with professional chuck fixture, precision machining of the pipe can be of different shapes and sizes

https: //www.

cnclaserengraver.

com/product/steel-tube-cnc-fiber-laser-cutting-machine/

Technical Parameters:

Item Specification

Model JS-TS-6020 series

Pipe Length 6000mm/8000mm available

Diameter Range Φ20-220x220mm;

Profile Type round pipes, square tubes, rectangular tubes, oval tubes, waist round metal, etc

Laser Type Fiber laser source

Laser Power 1000W – 6000W

Cutting Thickness Upon actual fiber laser source

Rated Output Power 10–100% (100W-1000W)

Min Cutting Width 0.2mm

Positioning Accuracy ≤±0.03㎜

Re-positioning Accuracy ≤±0.02㎜

Max Idle Speed 120r/min

Accelerated Speed 1.2 G

Oil Injecting System automatic

Laser Head Follow-up System automatic

Graphic Format Supported CAD, DXF, etc.

Power Supply 3-phase, 380V, 50Hz/60Hz

Working Environment Temp: 0-40℃, humidity: ≤80%, No condensation
