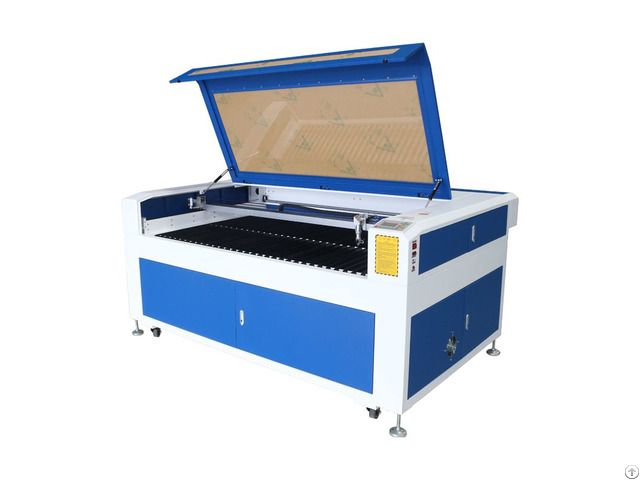

Cnc Co2 Laser Etching Machine For Engraving And Cutting Of Non Metal Materials - China

CNC CO2 Laser Etching Machine For Engraving And Cutting of Non-metal Materials Main Features: 1).

Powerful stepper motors and high precision HIWIN linear guide ensure fast running speed and stable performance.

2).

Advanced Ruida control system is equipped for CNC CO2 Laser Etching Machine For Engraving And Cutting of Non-metal Materials which has better stability, better resistance to high pressure, anti-static properties of interference.

3).

New-style high-efficiency RECI laser tube is adopted.

Laser beam is more stable than the traditional type.

Usage age is more than 10000 hours.

4).

High quality square tube framework, fuselage strength is 40% higher than iron sheet structure, greatly reducing the quivering, resonance and distortion during long term work.

5).

Red dot position system makes the positioning simple and precise.

6).

Advanced LCD Screen + USB port + Offline Control, with professional motion control chip, which has the function of consecutively high-speed curve cutting and the shortest path selection, largely improving the working efficiency.

7).

Automatic up-down table is optional for thick and special shape materials.

Technical parameters

Model JSC-1490 CNC CO2 Laser Etching Machine For Engraving And Cutting of Non-metal Materials

Working area 1400mm*900mm

Working table Optional Blade table or Honeycomb table

Laser type CO2 sealed laser tube

Laser power 60-300W

Cooling type Water cooling

Engraving speed 0-7500mm/min (According to the materials)

Driving system stepper motor

Transmission Belt transmission

Guide rail Taiwan Hiwin Square guide rails

control system Ruida control system

Graphic format supported BMP, AI, DST, CDR, PLT, DXF, JPG, PGN

Software Supported CorelDraw, Photoshop, AutoCAD, LaserCut, Tajima

Power supply AC 110-220V ± 10%, 50-60Hz

Working environment Temp: 0-40℃, humidity: ≤80%, No condensation

Optional parts Rotary device/Up-down worktable/Auto focus CCD camera, etc
