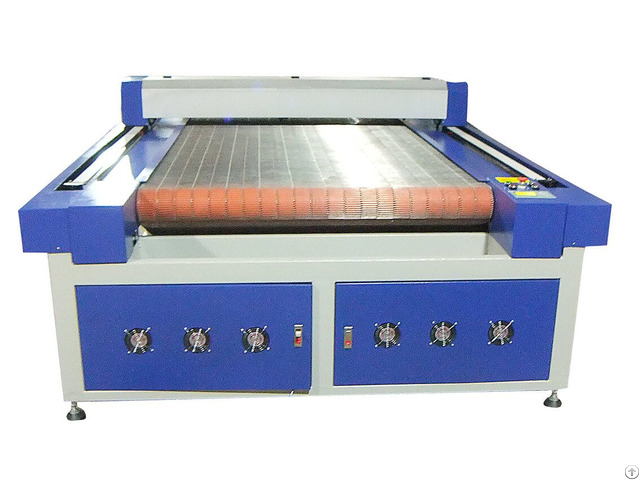

Auto Feeding Co2 Laser Cloth Cutting Machine For Fabric 1630 Series - China
price: 6600.00 Dollar US$
Auto Feeding CO2 Laser Cloth Cutting Machine for Fabric 1630 Series Laser Cutting Machine for Fabric Main Features: 1 - Automatic and continuous processing can be realized by using the crawler type worktable and the feeding system.
2 - Automatic optimization of processing path, configurable intelligent typesetting software can calculate material length saving materials and reduce costs 3 - High-power laser tube is equipped with high-speed inner slide rails, which has fast cutting speed and good automatic seaming function, which greatly improves work efficiency.
4 - Automatic correction feeding system, to solve the problem of long-term cutting cloth offset.
5 - Can quickly change the size of the shape, simple and convenient.
Technical parameters
Model JSC-1630 Auto Feeding CO2 Laser Cloth Cutting Machine for Fabric 1630 Series
Working area 1600*3000mm
Laser type CO2 sealed laser tube
Laser power 80-150w
Cooling Mode Water cooling
cutting speed 0-60000mm/min
laser Output 0-100% set by software
Position Accuracy ≤±0.01mm
Min.
Shaping Character English 1.0*1.0mm
Driving system stepper motor
Guide rail Taiwan Hiwin Square guide rails
Operating System USB ( DSP 6525)
Graphic format supported BMP, AI, DST, CDR, PLT, DXF, JPG, PGN
Software Supported CorelDraw, Photoshop, AutoCAD, LaserCut, Tajima
Power supply AC 110-220V ± 10%, 50-60Hz
Working environment Temp: 0-40℃, humidity: ≤80%, No condensation
Company Contact:
- Posted By: Jinan Jeesun CNC Machinery Co., Ltd
- Phone: +86-13046001147
- Address: Licheng District, Jinan , Shandong , China
- Email:
- Website: https://www.jeesuncnc.com
Published date: March 13, 2019
- Business Description: JeesunCNC Machinery was founded in 2010, which is a professional supplier specializing in R&D, manufacture and sales of different CNC machines, including fiber laser cutting machine, metal laser cutter, CNC plasma cutter, CNC wood router, stone cnc machine, 5 axis cnc router, etc.
It is our pursuit to provide high quality products, competitive prices and excellent services to customers all over the world.
