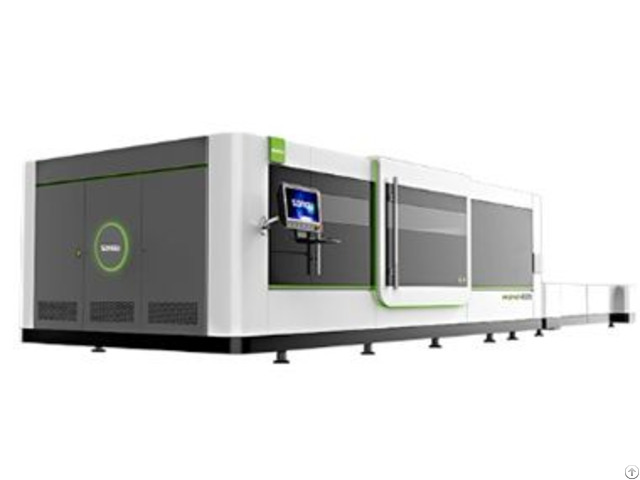

6000w High Power Fiber Laser Engraving Machine For Metal Wind3015 Wind4020 Wind6025 - China

This kind of high power laser engraving machine for metal especially fit for processing high reflective material such as brass, red copper and galvanize sheet etc .

Features:

a.

The high power fiber metal laser engraving machine with better laser beam quality, lower operating costs, less power consumption and longer working life by using the new generation IPG fiber laser source.

b.

Automatic energy saving mode: while stop over 5 minutes, machine automatically switch into “ standby “ mode, to reduce power consumption .

c.

Auto exchanging table with Hydraulic lifting system; ensure synchronous running for metal laser engraving machine, reliable and stable

d.

The metal laser engraving machine with remote function, can remotely monitor the running conditions of machine, much easier for service and faster response

e.

With ergonomic design, equipped with intelligent operation terminal, user-friendly and easy to learn

f.

The Metal laser engraving machine equipped with PRECITEC new generation pro-cutter laser cutting head, optimized cutting process, monitoring cutting condition through APP use easily and friendly g.

Eagle eye(CCD) technology, ultra fast positioning the sheet metal edge, minimum cutting down time, In addition, it also can process punching parts and precut parts, due to secondary positioning function

h.

Optimized cutting technology with programmable laser frequency and focus position, to achieve high efficiency processing on different thickness& type sheet metal .

ll cutting parameters can be programmed, no need human intervention Applicable materials

Metal materials such as aluminum alloy, Galvanize sheet, Carbon steel, stainless steel, Brass, Red copper etc.

Technical Parameter Maximum material size Wind3015: 3000x1500mm

Wind4020: 4000x2000mm

Wind6025: 6000x2500mm Laser power 3000W/4000W/6000W

Maximum speed 140m/min

Positioning Accuracy ±0.05mm(VDI/DGQ3441)

Repeated accuracy ±0.03mm(VDI/DGQ3441)

Model MACH2040/6025

Work environment Temperature 0-45℃ Humility≤ 80%, clean, less dust

Maximum accelerated speed 2.2(G)

Total Power 11kw/13kw/19kw

Machine weight 10T/13.5T/15.5T

Dimension Wind3015: 9800x3000x2200mm

Wind4020: 12000x3500x2200mm

Wind6025: 15500x4200x2200mm
